PTFE materials. Components made to your requirements.
Explore PTFE sheets, rods and film alongside custom machined seals, bellows and valve components. Share your material requirements, dimensions or drawings with our team to discuss a suitable option.
From stock shapes to custom parts
Choose a product form below, or send a drawing for a custom component. The catalogue includes virgin, filled and modified PTFE options; material grade and final dimensions are specified for each quotation.
PTFE Sheets
Compression-moulded PTFE sheets are available in virgin, compounded and modified material options. Request a sheet size or discuss cutting to your required dimensions.
Catalogue thickness examples: 8, 10, 12, 15, 20, 25, 30 and 40 mm.
- Sealing components
- Machined industrial parts

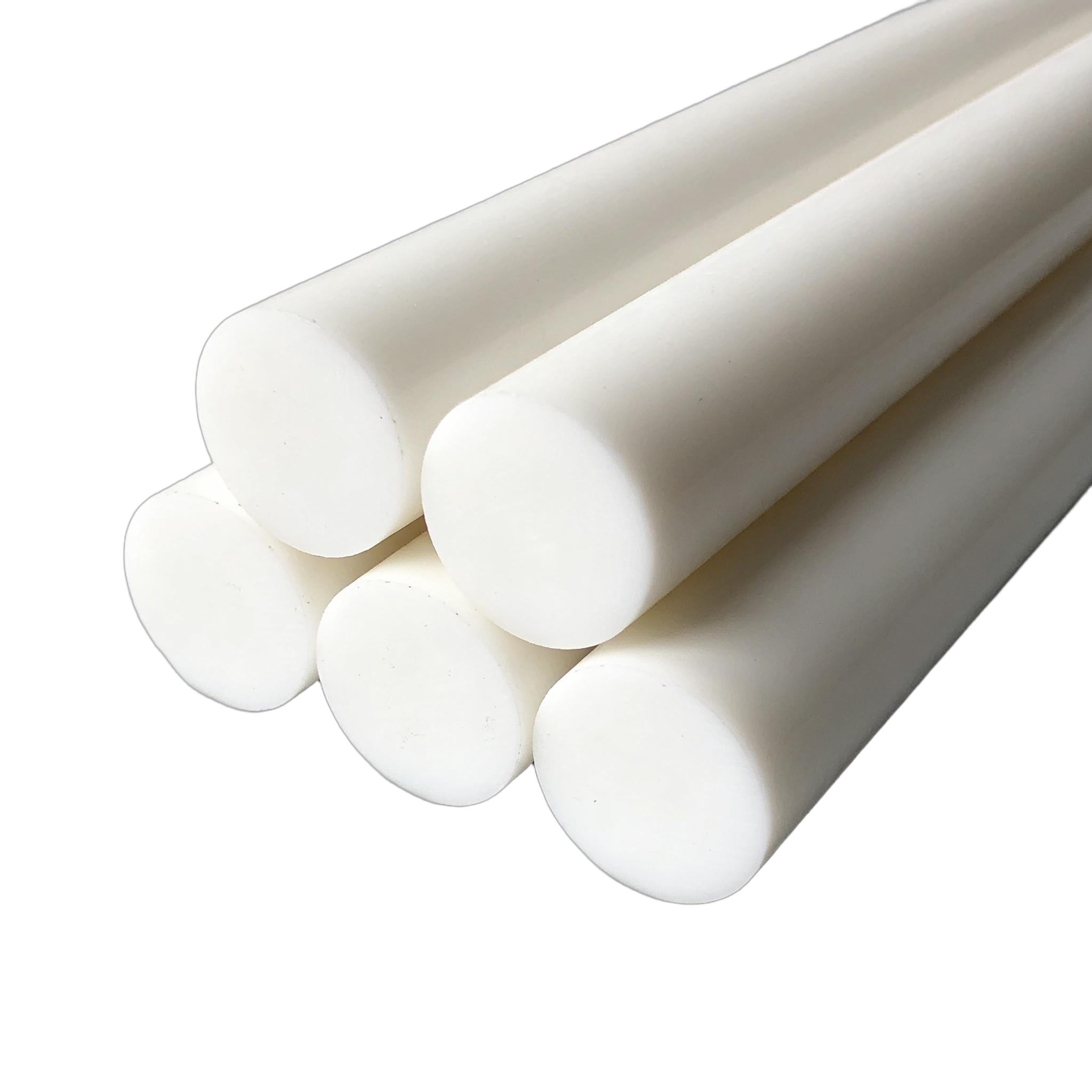

PTFE Rods
Ram-extruded PTFE rods for industrial component requirements. The catalogue includes virgin and coloured options, with cut lengths available for discussion.
Catalogue diameter examples: 4, 5, 6, 7, 8, 9 and 10 mm; lengths: 1,000 or 2,000 mm.
- Sealing components
- Machined industrial parts

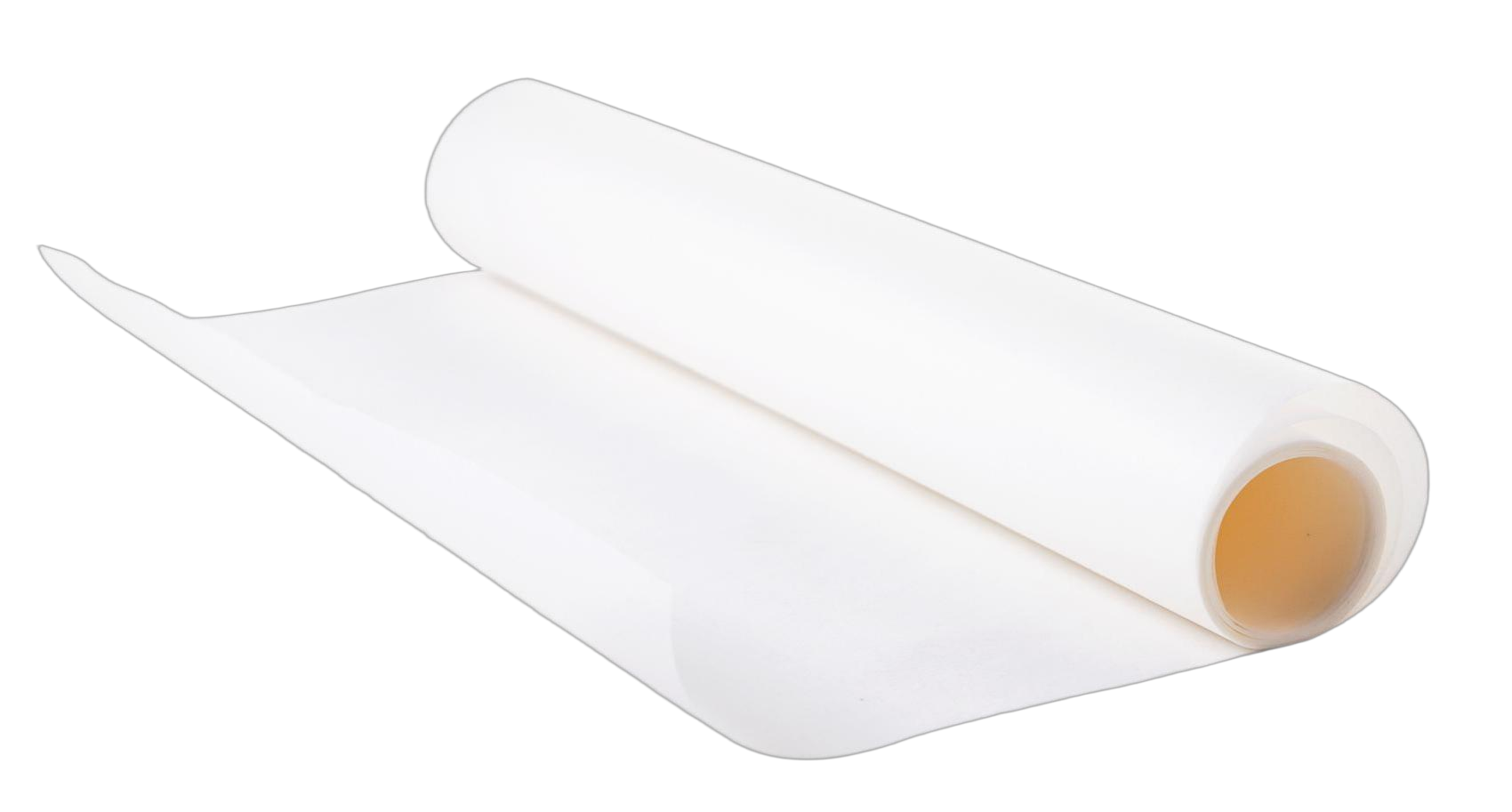

PTFE Film
PTFE film is skived from moulded billets. Discuss virgin, coloured, filled or modified options, including a specified antistatic or conductive requirement where needed.
Four catalogue thickness bands are listed below, with widths up to 300 or 500 mm depending on thickness.
- Electronics
- Cable applications
- Automotive components
Filled & Modified PTFE
Discuss filler options for your sealing, sliding or wear-component requirements. The catalogue lists glass fibre, carbon fibre, graphite, bronze or copper powder, and molybdenum disulfide fillers.
Filler type, content and final grade are specified for each application and quotation.
- Bearings and bushings
- Sealing rings
- Sliding and wear components

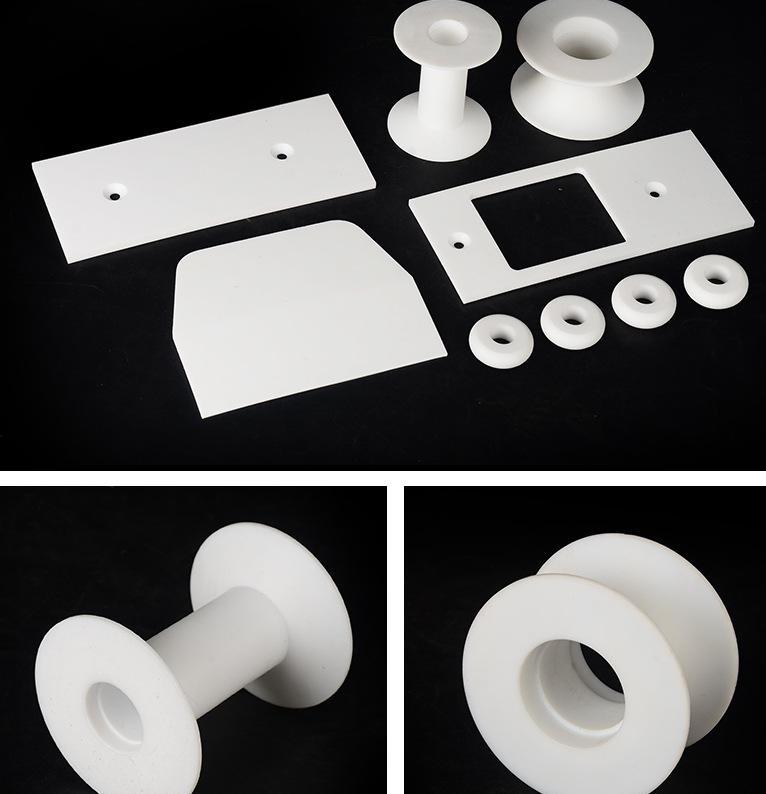

Custom Machined Components
Request plastic components based on your drawings, with material, dimensions and shape selected for the part. The catalogue includes PTFE compounds and modified PTFE among the machining options.
Dimensions and shapes are discussed against customer drawings.
- Drawing-based industrial components
- Custom profiles and shapes

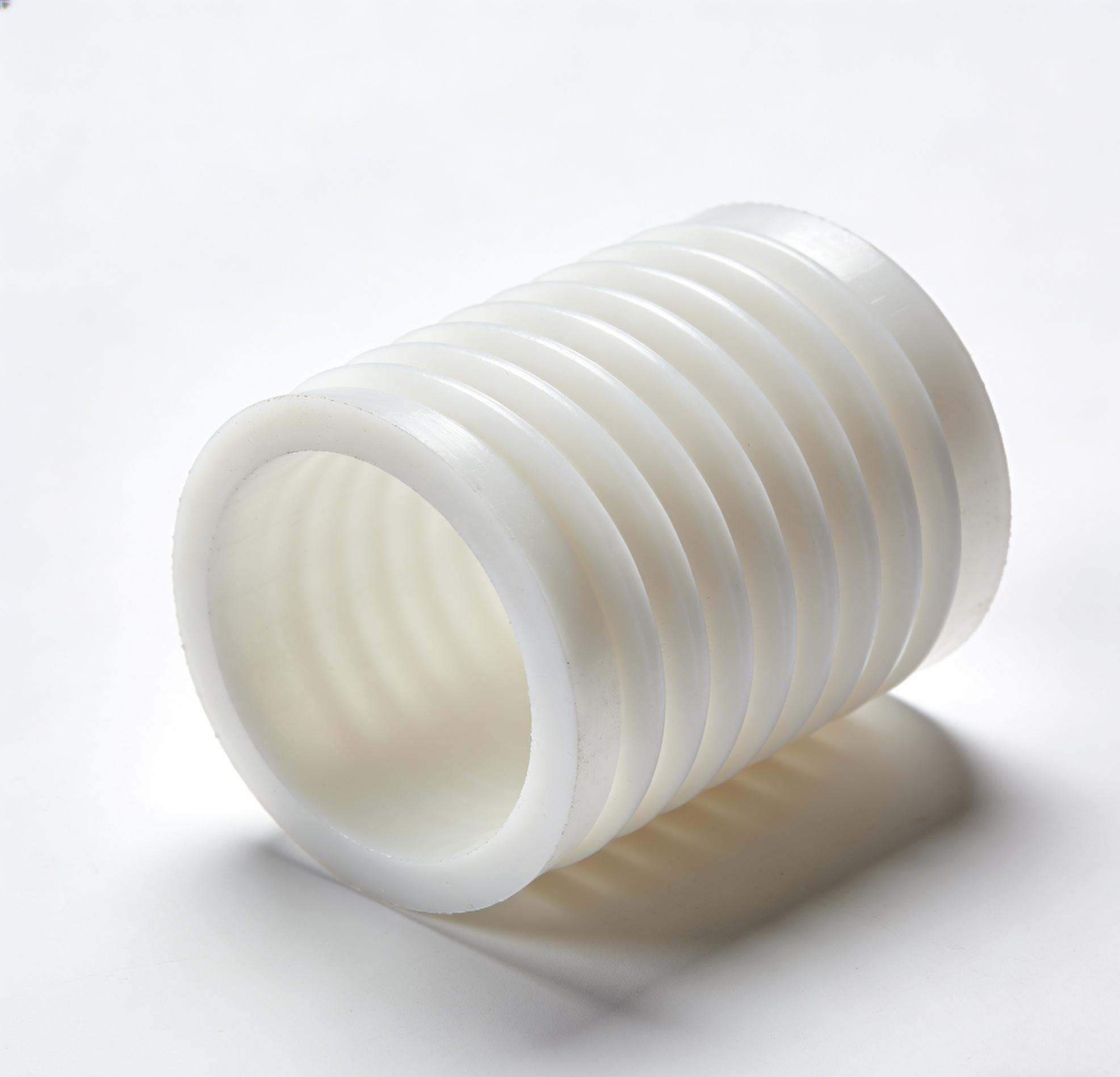

Bellows
Custom bellows for connections between engineering components. Discuss PTFE or modified PTFE options, the required profile and your operating conditions.
Sizes and shapes can be specified from drawings.
- Flexible connections
- Chemical equipment components

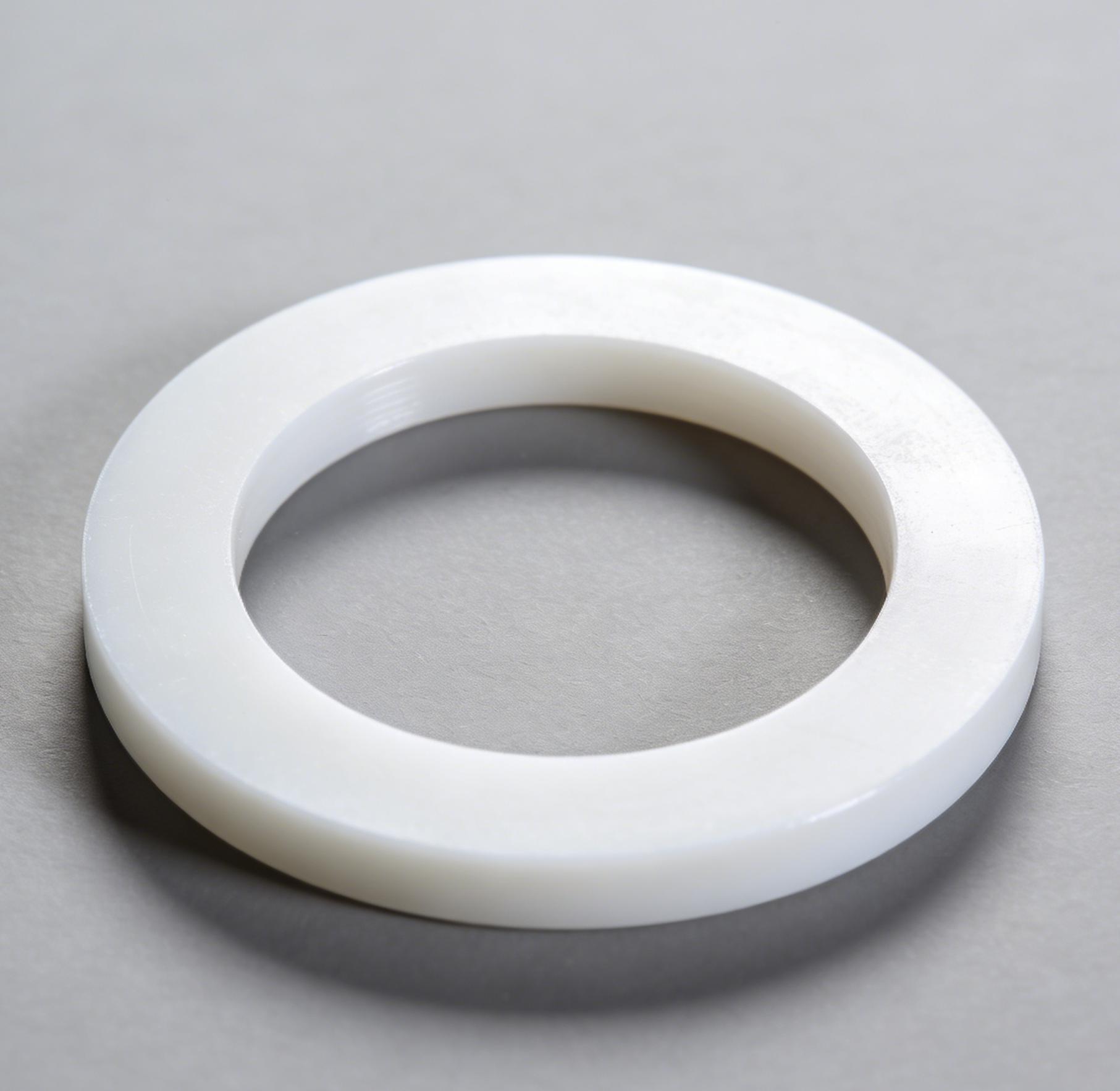

Seals & Gaskets
PTFE, modified PTFE and compounded PTFE options for sealing components. Send the seal profile, dimensions and working conditions for review.
Dimensions and profiles are specified from drawings.
- Hydraulic seal components
- Oil seal components
- Mechanical seals

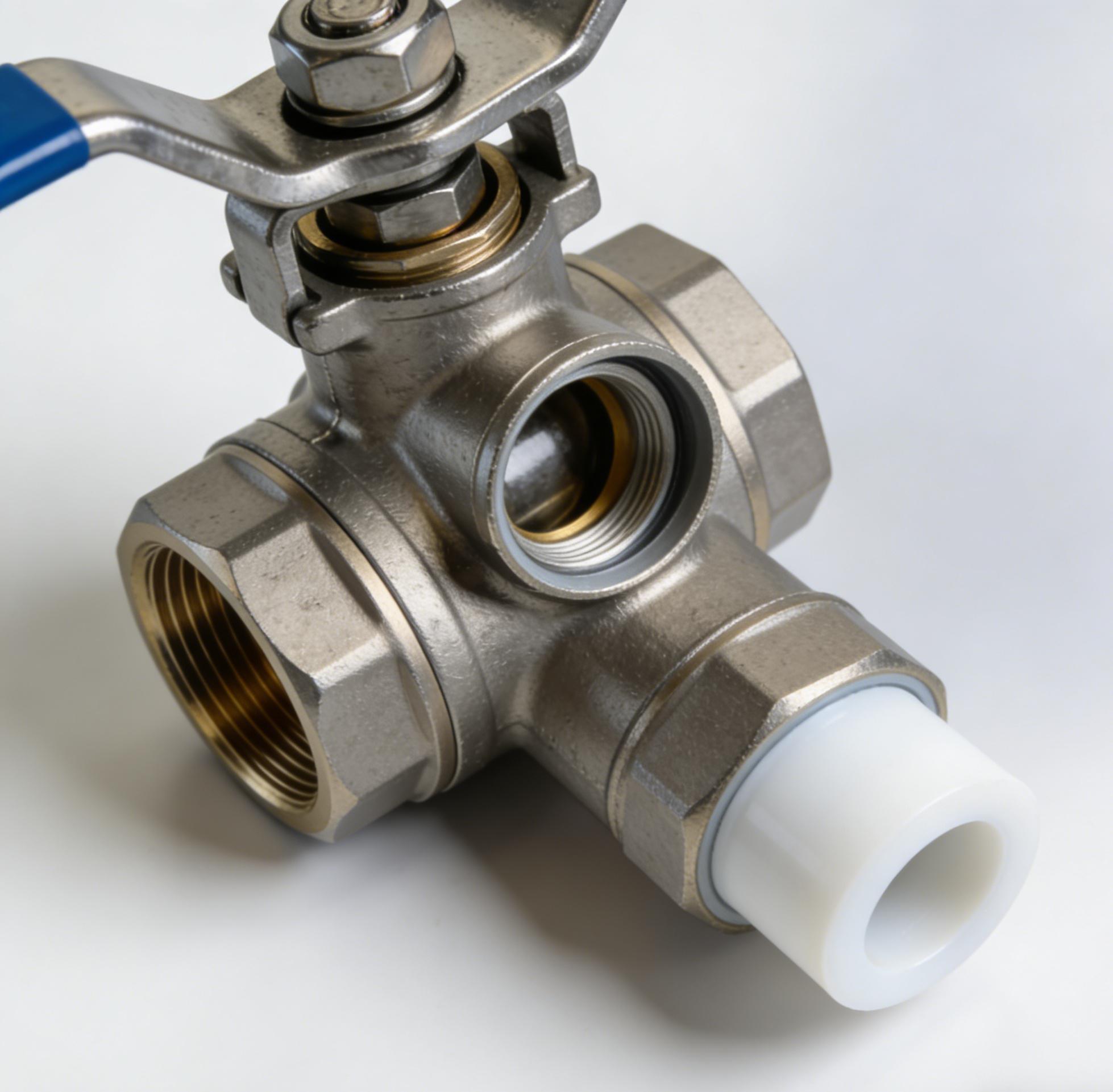

Valve Seats & Components
Explore PTFE valve seats, spheres and related components. The catalogue also lists modified PTFE, PTFE compounds, PCTFE and PFA material options for these parts.
Material and part dimensions are specified for the valve design.
- Valve seats
- Valve spheres and fittings

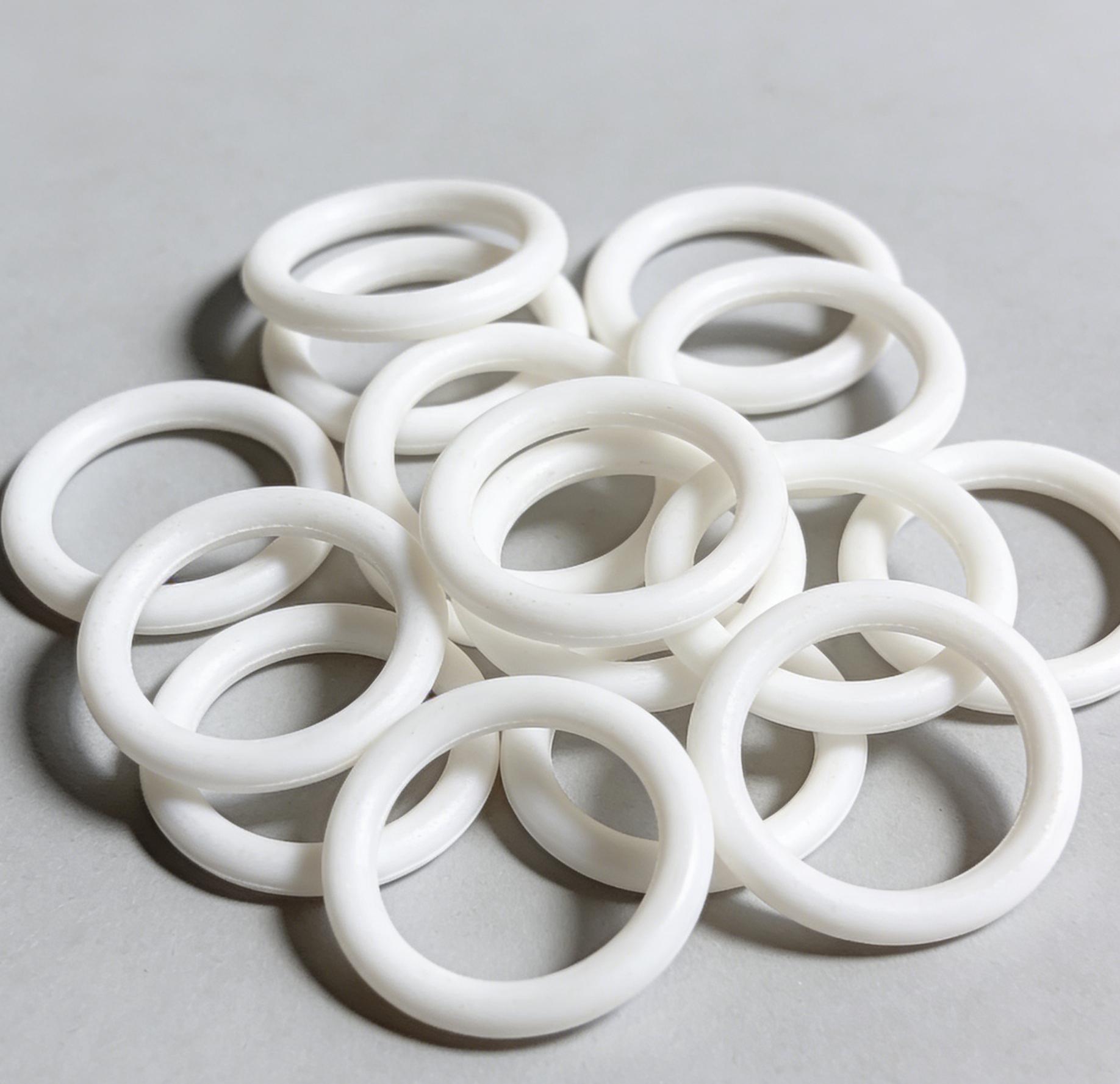

O-Rings
Circular sealing rings for static sealing requirements. Discuss PTFE or modified PTFE material options and provide the required ring dimensions.
Dimensions and shape are specified from customer drawings.
- Static sealing
- Industrial sealing components
Catalogue size examples
These examples show part of the catalogue range. Ask us about other dimensions, cut sizes and the material grade required for your application.
PTFE sheet examples
| Specification | Details |
|---|---|
| Thickness (mm) | 8, 10, 12, 15, 20, 25, 30, 40 |
| Sheet size (mm) | 300 × 300; 500 × 500; 600 × 600; 1000 × 1000; 1200 × 1200; 1500 × 1500; 1000 × 2000 |
PTFE rod examples
| Specification | Details |
|---|---|
| Diameter (mm) | 4, 5, 6, 7, 8, 9, 10 |
| Length (mm) | 1000, 2000 |
PTFE film examples
| Thickness (mm) | Maximum width (mm) |
|---|---|
| 0.01-0.02 | 300 |
| 0.025-0.1 | 500 |
| 0.1-0.3 | 500 |
| 0.4-1.0 | 500 |
Length is specified on request. Ask us about dimensions outside these catalogue examples.
Start with your drawing or application
We can discuss machined components with dimensions and shapes based on your drawings. For an accurate quotation, provide the part drawing, preferred material, required quantity and operating conditions.
- Product type or a dimensioned drawing
- Material grade or filler requirement, if specified
- Dimensions, tolerances and quantity
- Operating temperature, media, pressure or load relevant to the part
- Delivery destination and requested schedule
Working with another engineering plastic?
Our catalogue also includes PEEK and polyimide materials, with PFA and PCTFE options listed for selected machined and valve components. Contact us to discuss the material and grade required for your part.
