SAFE · Automatic Placket Sewing

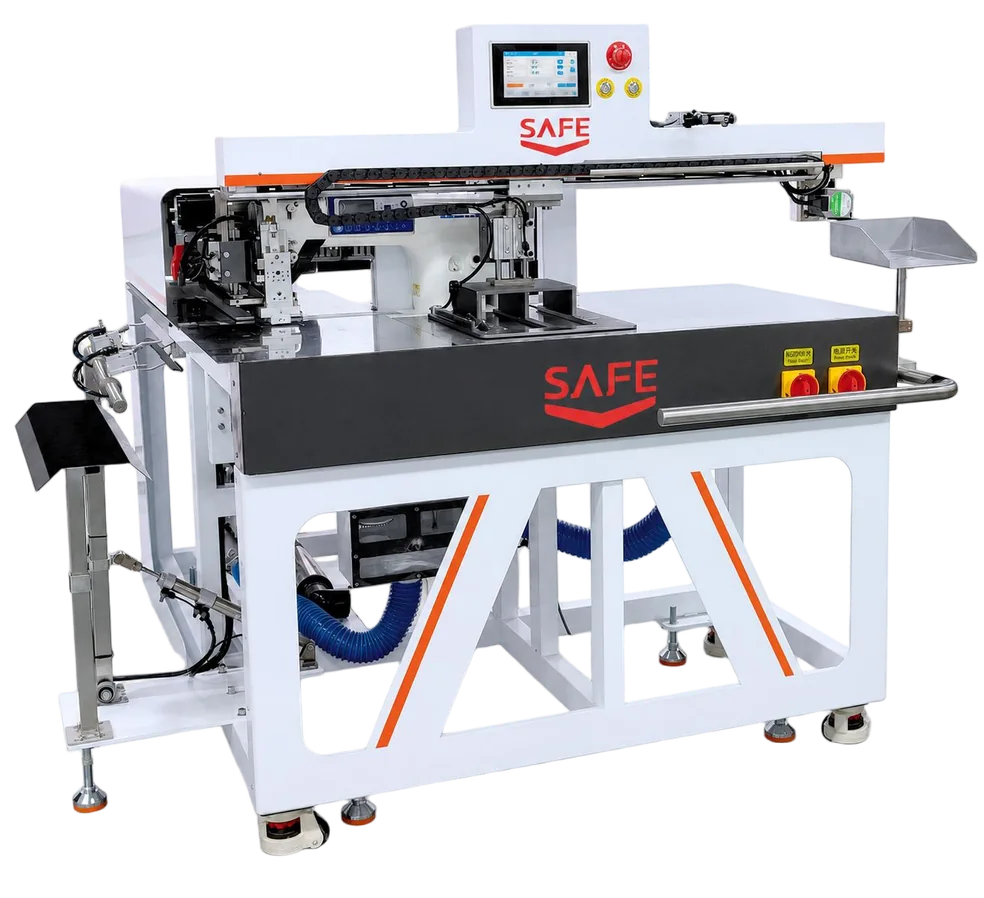

SF-05PCAutomatic Polo Placket Sewing and Cutting Machine
The SF-05PC is an automated polo placket sewing machine and cutting workstation. Controlled sewing, knife cutting, laser positioning and material collection are combined for the selected polo-shirt construction.
Compare this model with sewing automation, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01Single, double or triangular knife arrangements can be configured for the placket.
- 02Cold knife cutting avoids the use of heat in the cutting operation.
- 03Expandable clamping plates help manage fabric slack.
- 04Laser positioning assists workpiece alignment.
- 05Suction support and automatic feeding, sewing, cutting and collection organize the work cycle.
Applications & sewing operations
Match the machine to your work.
- Polo-shirt placket sewing
- Placket cutting and sewing in a combined process
- Placket shapes reviewed with your garment sample
Send your material and intended seam for configuration review. Catalogue examples illustrate the application; confirm the required result with a sample.
From the SAFE catalogue
A closer look.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 74. Confirm the final configuration in your quotation.
| Maximum speed | 4,000 rpm |
|---|---|
| Voltage | 220 V |
| Power | 1,700 W |
| Air pressure | Above 0.5 MPa |
| Needle system | DP×17 |
| Sewing range | 320 mm long × 50 mm wide |
| Stitch length | 1–5 mm |
| Catalogue production rate | 250–350 pieces/hour; application dependent |
| Packing size | 1,700 × 1,600 × 1,500 mm |
| Net weight | 345 kg |
Before you choose
Questions about this machine.
Can the placket cutting shape be customized?
The catalogue describes single, double and triangular knife configurations. Send the finished placket and cutting dimensions for a tooling review.
Which details determine a polo placket workstation setup?
Send the finished placket drawing, fabric and interlining layers, required opening and stitch dimensions, and component orientation. Sewing and cutting must be reviewed together with the material presentation and collection steps.
Ordering & after-sales
Support beyond the machine.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
