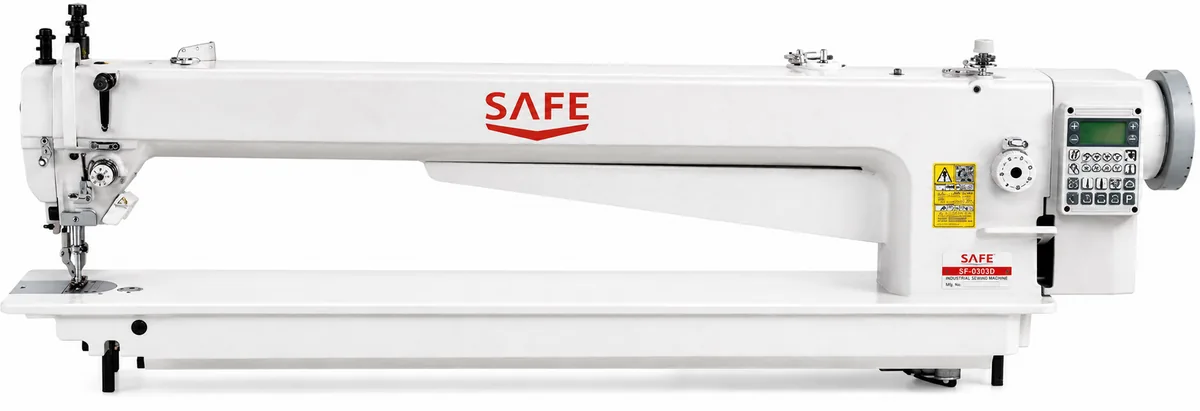

SF-0385-D4/ATLong-Arm Top-and-Bottom-Feed Sewing Machine
The SF-0385-D4/AT is a long-arm industrial sewing machine with 850 mm needle-to-column clearance for bulky workpieces. Top-and-bottom feed and direct-drive servo operation support medium and heavy sewing applications.
Compare this model with heavy duty & compound feed, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01850 mm needle-to-column clearance for larger workpieces.

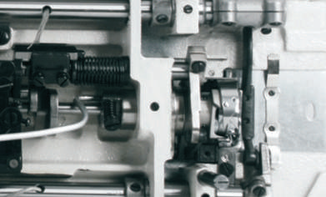

- 02Link-type top-and-bottom feed helps handle layered materials.

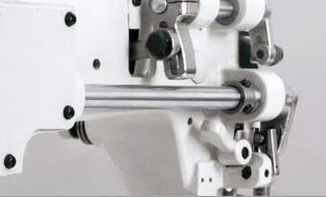

- 03Large hook and automatic lubrication.
- 04Electronic controls include needle positioning, stitch counting, trimming, thread clamping and automatic presser-foot lifting.
Applications & sewing operations
Review it against your production task.
- Bags, leather garments and leather goods.
- Bulky layered pieces that need additional working clearance.
- Upholstery seams after confirming material thickness and configuration.
Send your material and intended seam for configuration review. Optional functions and attachments should be confirmed in the quotation.
From the SAFE catalogue
A closer look.
Technical data
Specifications.
Specifications follow the reviewed SAFE v06 catalogue. Confirm your final machine configuration in the quotation.
| Specification | Details |
|---|---|
| Working clearance | 850 mm, needle to column |
| Needle type | DP×17 #20–23 |
| Stitch length | 8–12 mm |
| Presser-foot lift | 8 / 16 mm |
| Maximum speed | 2,000 rpm |

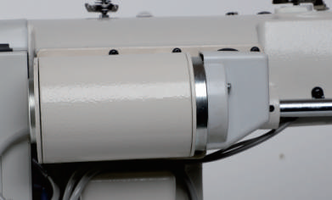

| Drive | Direct-drive servo |
| Automatic functions | Thread trimming, thread wiping and backtacking |
| Packing dimensions | 1,350 × 340 × 625 mm |
| Listed weight | 90 kg |
Before you choose
Questions about this machine.
Why choose a long-arm machine?
The longer working space helps accommodate large or bulky pieces to the right of the needle. Share the workpiece dimensions to check that 850 mm clearance is suitable.
Is the listed speed suitable for every seam?
The 2,000 rpm figure is the catalogue maximum. Working speed depends on the material, thread, needle and seam construction.
Is long-arm clearance the same as sewable material thickness?
No. The long arm gives room to handle the workpiece beside the needle. Material thickness and seam suitability depend on the feeding system, needle, thread, settings and component construction, which must be reviewed separately.
Ordering & after-sales
Support beyond the machine.
Tell us where the machine will be used and the configuration you require.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
