SAFE · Select by operation
Compare feed mechanisms and working space for leather goods, upholstery and other medium-to-heavy sewn assemblies. SAFE offers compound-feed, cylinder-bed and long-arm options; the right choice depends on both the material and the shape of the workpiece.
Model comparison
Compare these catalogue specifications, then open a model for full technical data. Final configuration is confirmed with your quotation.
| Model | Feed or working arrangement | Listed maximum speed | Selection point |
|---|---|---|---|

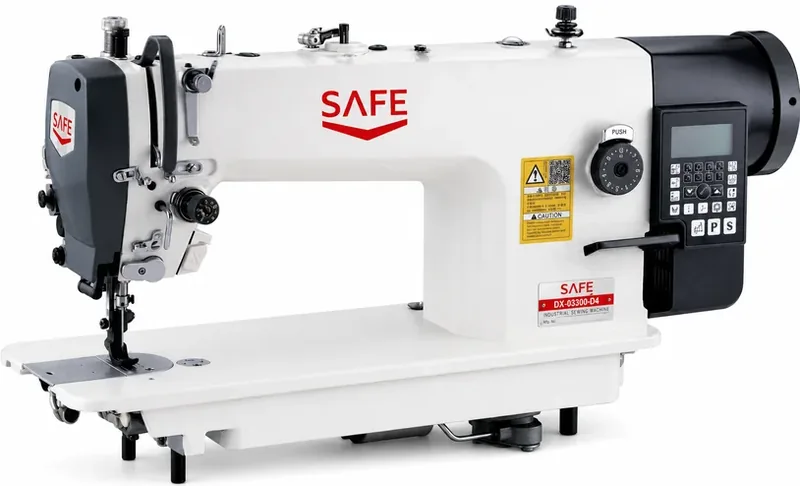

| SF-0330-D4 | Compound feed; 260 × 120 mm operating space | 2,000 rpm | D4 automatic trimming, backtacking and presser-foot lifting |

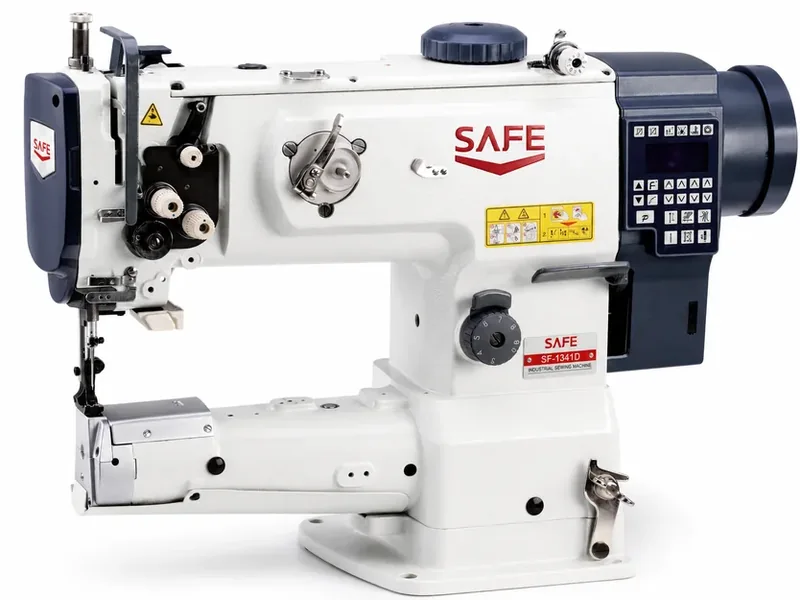

| SF-1341D-7 | Cylinder bed with compound feed | 2,500 rpm | Tubular and curved work, including bags and small leather goods |

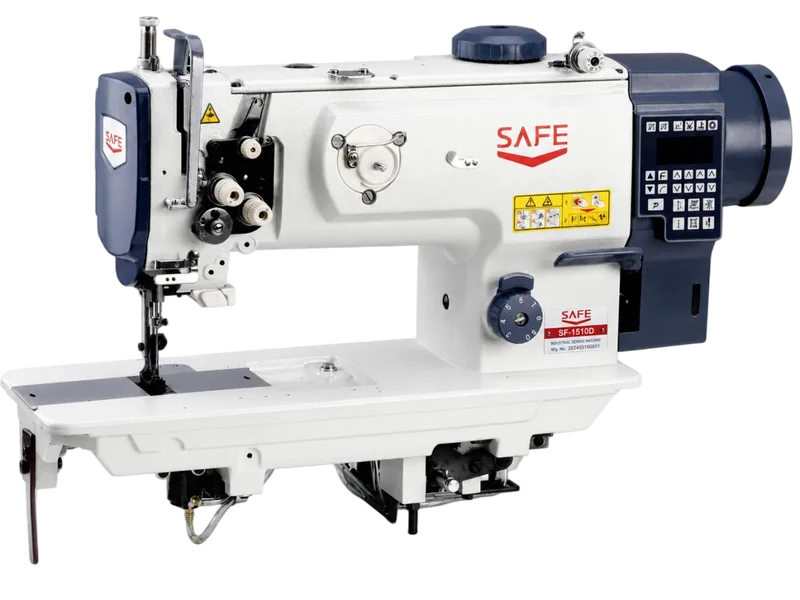

| SF-1510D-7 | Heavy-duty compound-feed lockstitch | 2,500 rpm | Bags, cases and upholstery; 255 × 105 mm working space |

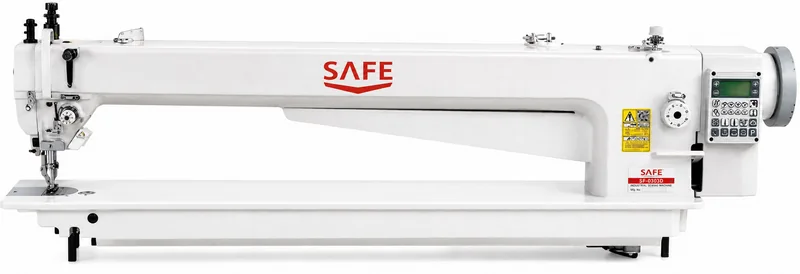

| SF-0385-D4/AT | Long arm; top-and-bottom feed | 2,000 rpm | 850 mm needle-to-column clearance for bulky workpieces |

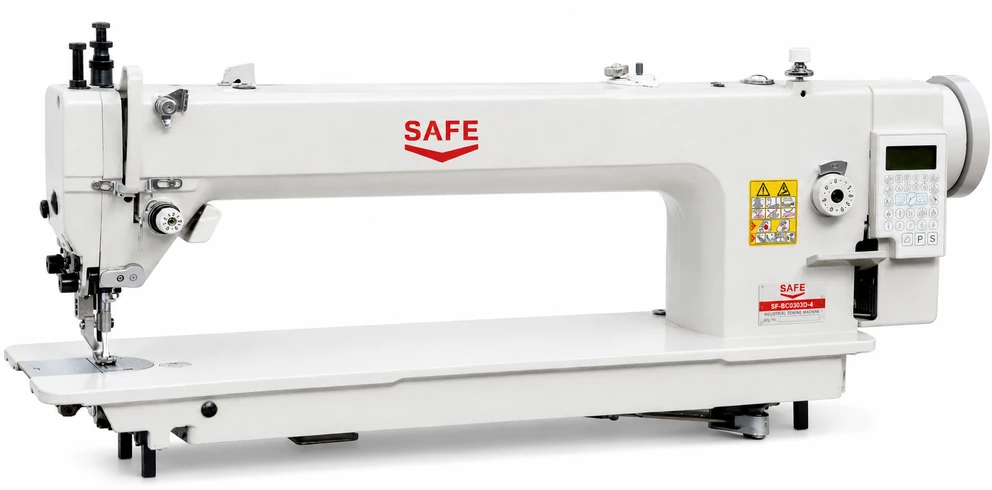

| SF-0356-D4/AT | Long arm; top-and-bottom feed | 2,000 rpm | Heavy-material work; automatic trimming and backtacking |

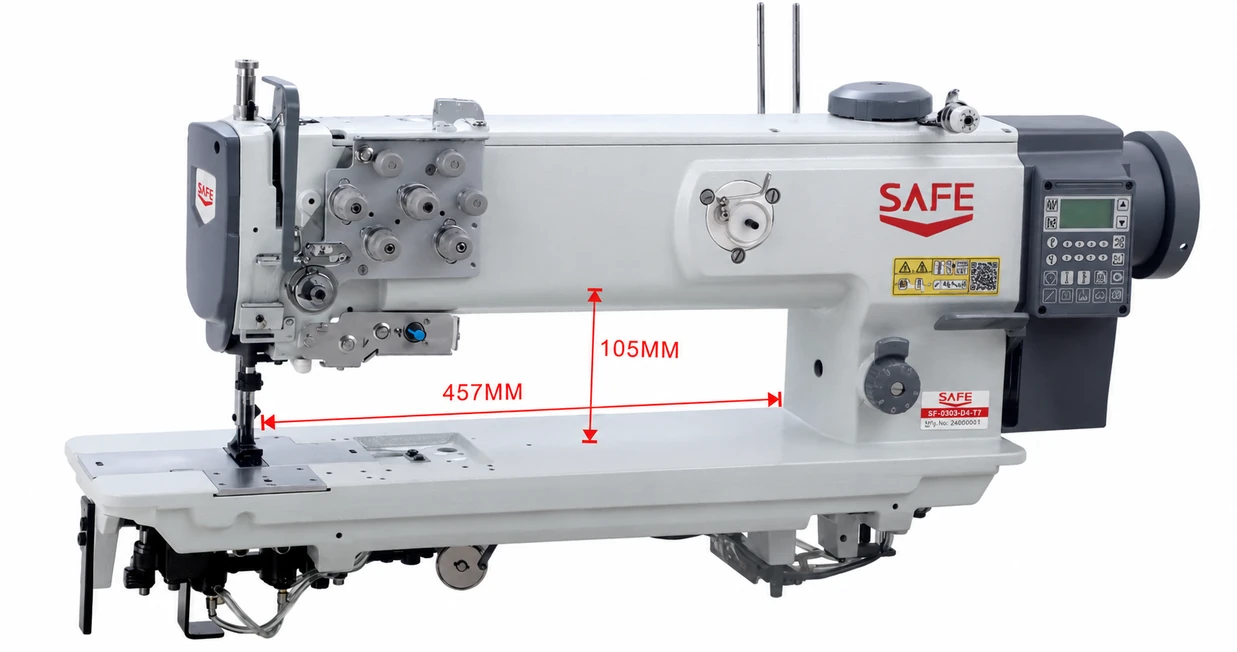

| SF-1560DL-18-7 | Twin needles; compound feed | 1,800 rpm | 457 mm working length; leather goods and upholstery |

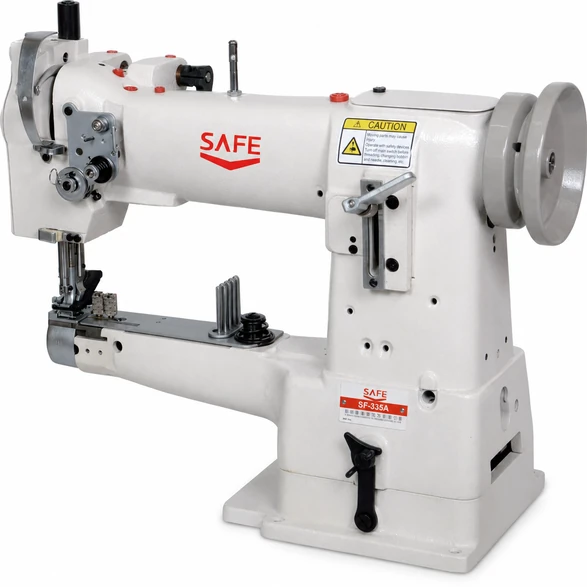

| SF-335A | Cylinder bed; binding configuration | 2,200 rpm | Shoes, bags and leather binding |

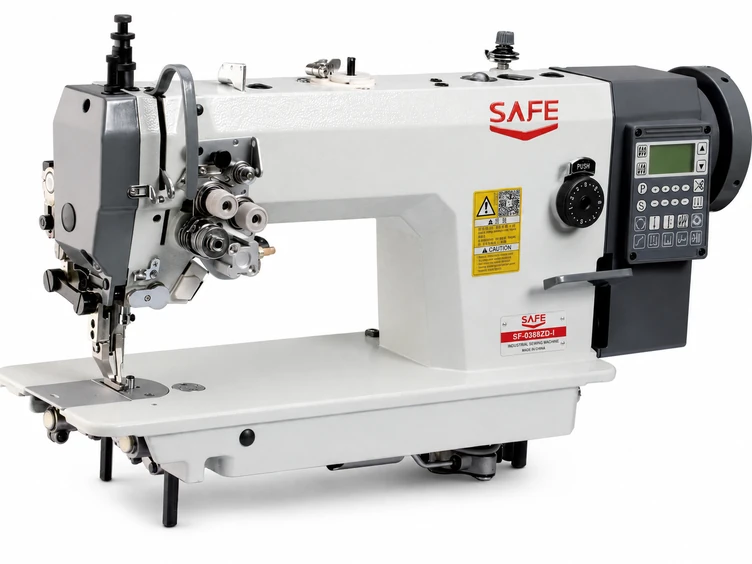

| SF-0388Z-D4 | Dedicated ball-sewing configuration | 2,300 rpm | Football / soccer-ball panel sewing |
| SF-0336S | Computerized Top and Bottom Feed Sewing Machine | 2,300 rpm | Computerized feed; automatic trimming and backtacking |

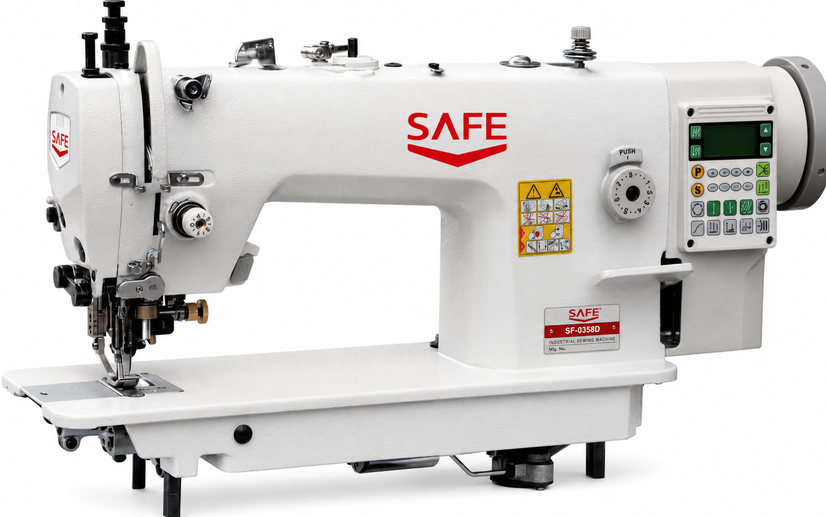

| SF-0358-D3 | Top and Bottom Feed Sewing Machine with Knife | 2,300 rpm | Edge trimming; D3 functions specified separately |

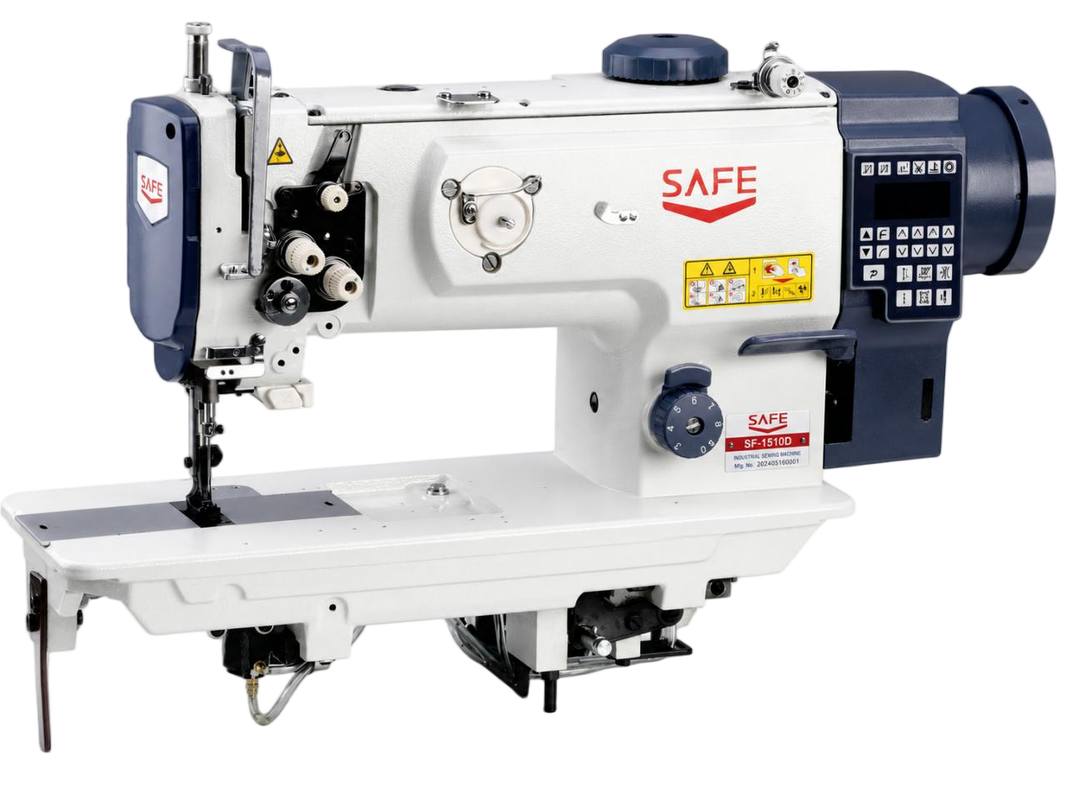

| SF-1510D | Single Needle Compound Feed Sewing Machine | 2,500 rpm | 255 × 105 mm workspace; compare D-7 automatic functions |

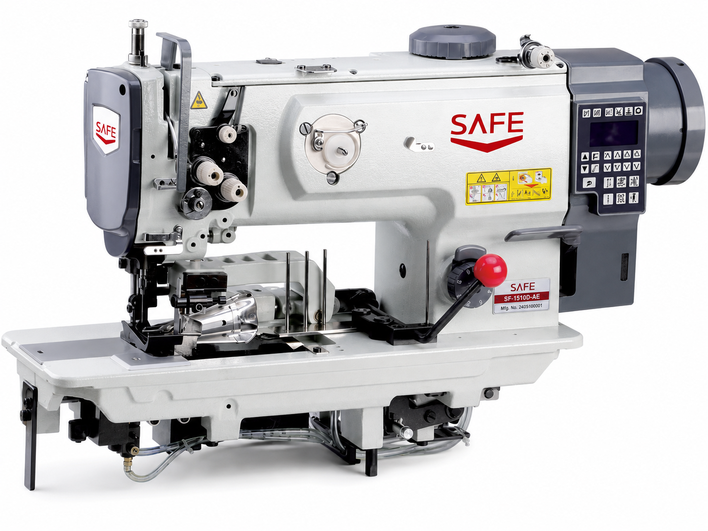

| SF-1510D-AE | Compound Feed Trimming and Binding Machine | 2,000 rpm | 255 × 105 mm workspace; confirm binder and options |

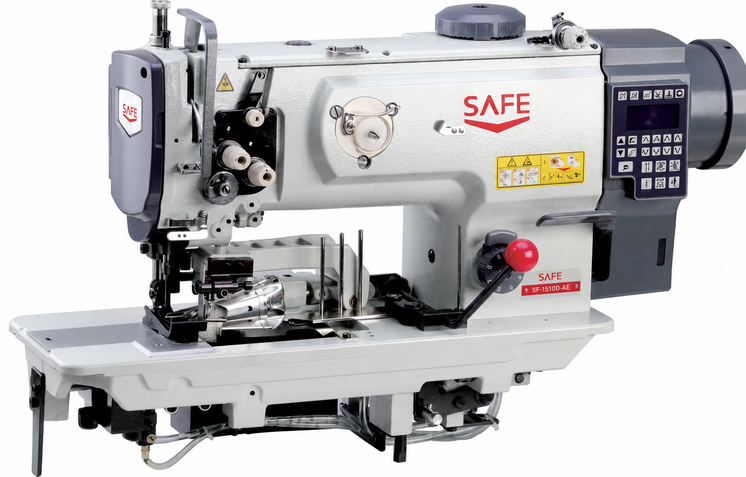

| SF-1510DL-AE | Large-Format Trimming and Binding Sewing Machine | 2,000 rpm | 360 × 125 mm workspace; confirm binder and options |
| SF-1560DL-25-7 | Long Arm Double Needle Compound Feed Sewing Machine | 1,800 rpm | 635 mm horizontal workspace; specify gauge and air supply |

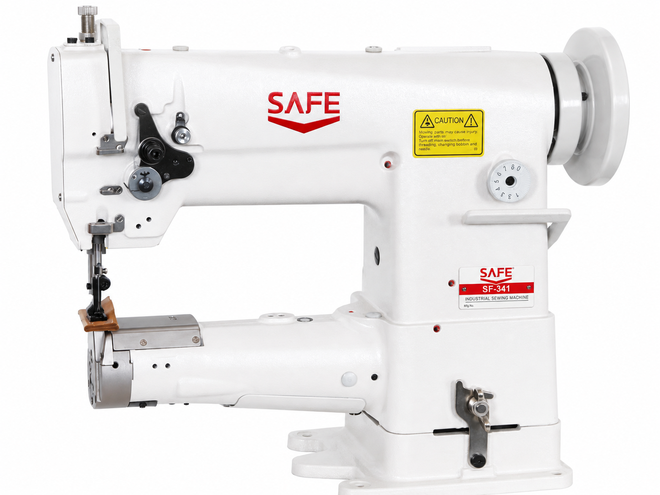

| SF-341 | Single Needle Cylinder Bed Sewing Machine | 2,000 rpm | Cylinder bed; confirm supplied drive arrangement |

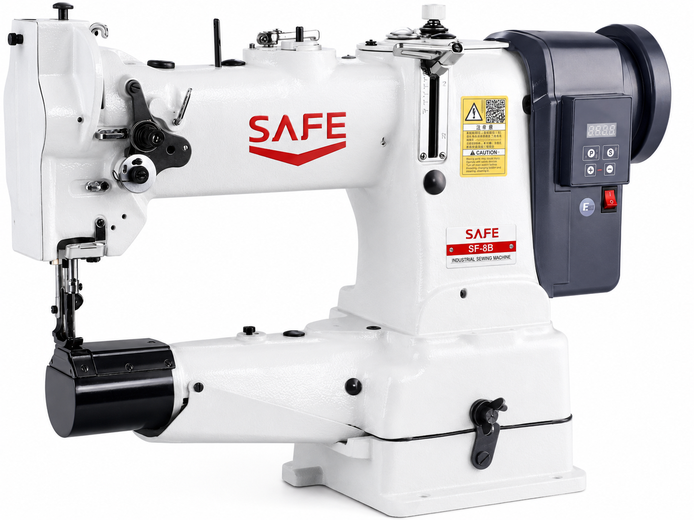

| SF-8B | Compound Feed Cylinder Bed Sewing Machine | 2,200 rpm | Cylinder bed; 0–6 mm stitch-length range |

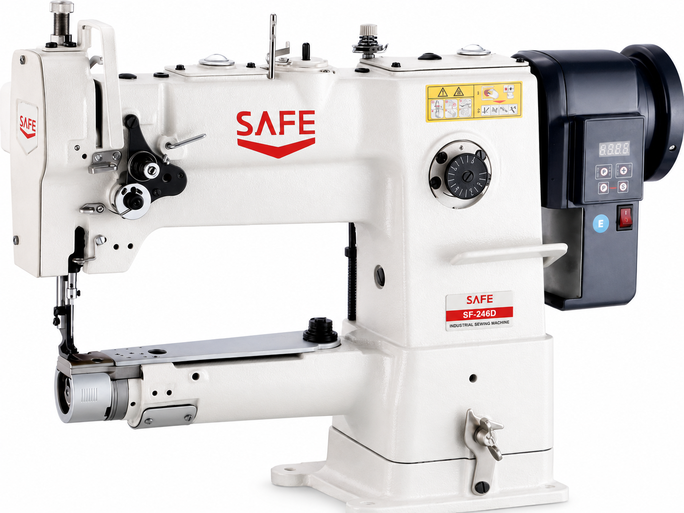

| SF-246D | Auto-Lubricated Cylinder Bed Sewing Machine | 2,000 rpm | Auto-lubricated cylinder bed; separate D specification |

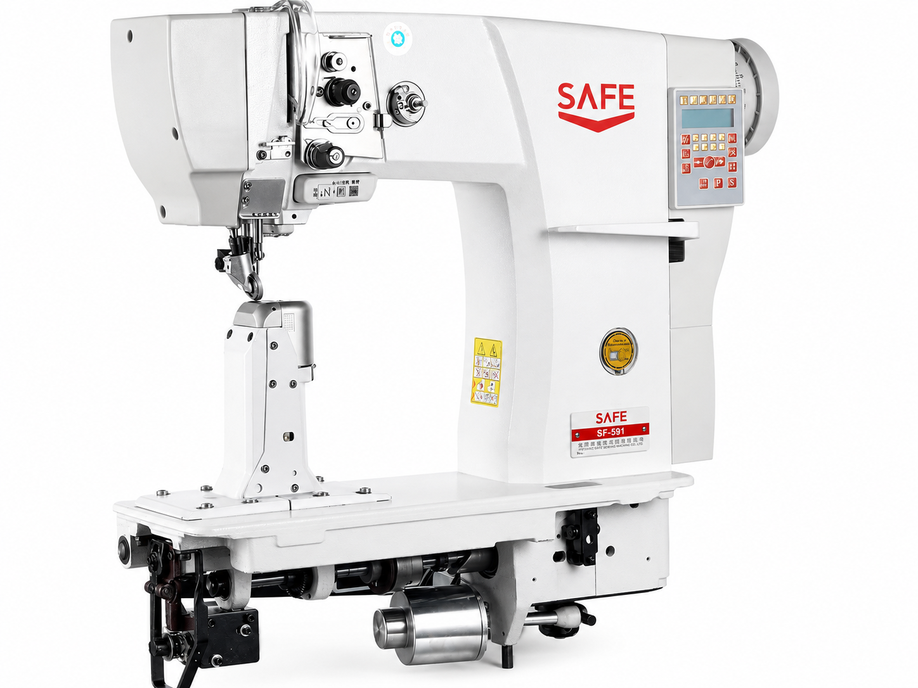

| SF-591 | Single Needle Roller Feed Sewing Machine | 3,000 rpm | Single needle roller feed for footwear and curved goods |
Sewing performance depends on material, thread, needle, settings and handling. Send the required seam or component for application review.
Make an informed selection
An industrial walking-foot sewing machine enquiry often involves layered material or difficult handling. The compound-feed configurations here coordinate the presser foot, needle and feed dog; buyers may call this triple feed. SF-0385-D4/AT uses a different top-and-bottom-feed arrangement. Match the specific mechanism to the seam.
For an industrial leather sewing machine, compare the component shape and access as well as the material stack. SF-1341D-7 is a cylinder-arm sewing machine option for curved and tubular work. SF-1510D-7 addresses listed leather-goods and upholstery applications.
A long-arm industrial sewing machine provides more space for bulky workpieces. A heavy-duty industrial sewing machine is still selected by the full material, thread, needle and seam requirements. Send the thickest crossing and the complete assembly for review.
Explore specifications
Heavy Duty & Specialised Sewing
Computerized Top and Bottom Feed Sewing Machine
Heavy Duty & Specialised Sewing
Top and Bottom Feed Sewing Machine with Knife
Heavy Duty & Specialised Sewing
Single Needle Compound Feed Sewing Machine
Heavy Duty & Specialised Sewing
Compound Feed Trimming and Binding Machine
Heavy Duty & Specialised Sewing
Large-Format Trimming and Binding Sewing Machine
Heavy Duty & Specialised Sewing
Long Arm Double Needle Compound Feed Sewing Machine
Heavy Duty & Specialised Sewing
Single Needle Cylinder Bed Sewing Machine
Heavy Duty & Specialised Sewing
Compound Feed Cylinder Bed Sewing Machine
Heavy Duty & Specialised Sewing
Auto-Lubricated Cylinder Bed Sewing Machine
Heavy Duty & Specialised Sewing
Single Needle Roller Feed Sewing Machine
Heavy Duty & Long Arm
Long-Arm Top-and-Bottom-Feed Lockstitch Machine
Bags and larger sewn assemblies needing additional handling space.
Heavy Duty & Compound Feed
Double-Needle Compound-Feed Sewing Machine
Parallel seams on leather bags and other leather goods.
Cylinder Bed & Heavy Duty
Cylinder Bed Binding Sewing Machine
Binding operations on shoes and bags.
Football & Heavy Duty Sewing
Direct Drive Football Sewing Machine
Sewn football and soccer-ball panel assemblies.
Before you choose
SF-1341D-7 provides a cylinder-bed compound-feed option for tubular and curved work. SF-1510D-7 includes bags and cases among its listed applications. Compare access, working space and seam requirements using your actual bag construction before selecting one.
Yes. Orders start from one machine. SAFE provides a one-year machine warranty, spare parts supply and remote technical support. Configuration and delivery timing are confirmed with the order.
