Home / Sewing Machines / Sewing Automation / SF-5022-S/L
SAFE · Trouser Hemming

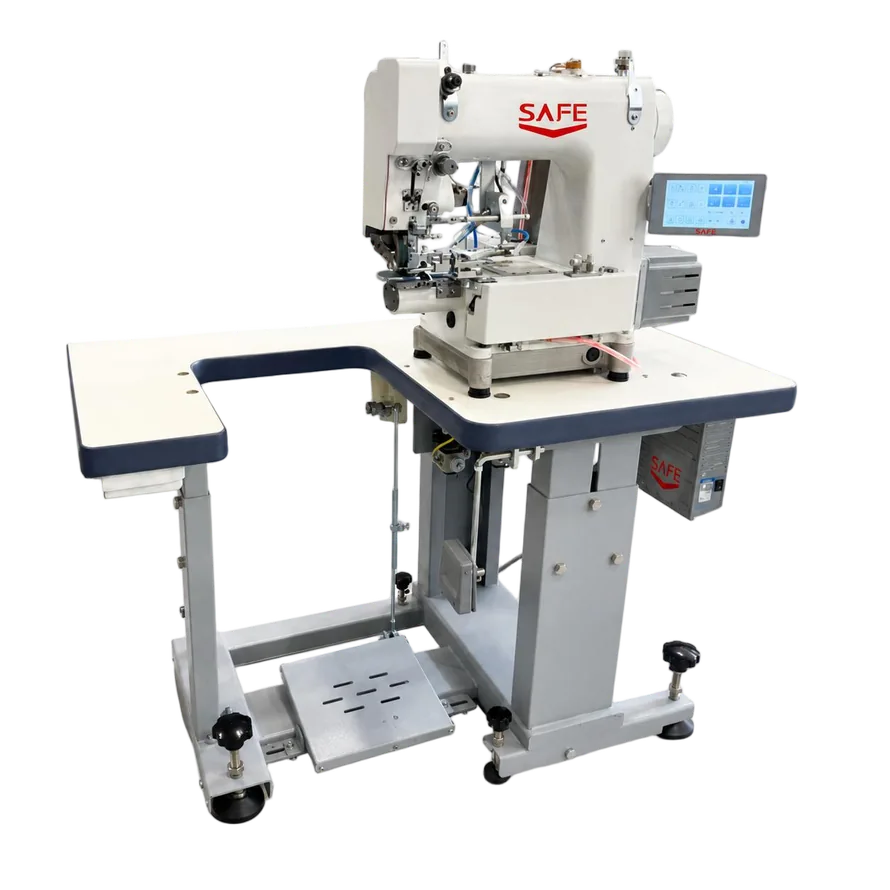

SF-5022-S/LAutomatic Trouser-Bottom Hemming Machine
The SF-5022-S/L is a jeans bottom hemming machine with small-cylinder handling and rear puller feed. Its convertible lockstitch and chainstitch setup serves configured trouser hems within the listed 9–42 mm hemming-width range.
Compare this model with sewing automation, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01Conversion parts and the matching control program allow lockstitch or chainstitch operation.
- 02Needle feed and a rear puller support fabric movement through the hem.

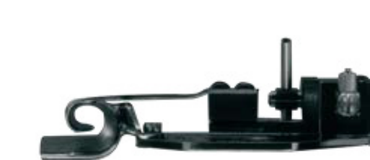

- 03Forward and reverse hemming attachments accommodate different work methods.
- 04Electronic stitch-length adjustment supports repeatable setup.
- 05Automatic lubrication, thread wiping and trimming support routine production.
- 06The small cylinder accepts trouser legs with a minimum diameter of 50 mm.
Applications & sewing operations
Match the machine to your work.
- Jeans bottom hemming
- Trouser-leg hemming
- Light, medium and heavy materials with a suitable setup
Send your material and intended seam for configuration review. Catalogue examples illustrate the application; confirm the required result with a sample.
From the SAFE catalogue
A closer look.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 55. Confirm the final configuration in your quotation.
| Maximum speed | 4,000 rpm |
|---|---|
| Voltage | 220 V |
| Stitch length | 0.9–9 mm |
| Hemming width | 9–42 mm |
| Minimum tubular diameter | 50 mm |
| Stitch systems | Convertible lockstitch / chainstitch |
| Presser-foot lift | Pneumatic |
| Feeding | Needle feed with rear puller |
Before you choose
Questions about this machine.
How is the stitch system changed?
The catalogue describes changing the relevant conversion parts and selecting the matching program. It is a setup operation, not an automatic change between stitches during sewing.
What hemming dimensions can I request?
The catalogue gives a 9–42 mm hem width and a minimum tubular diameter of 50 mm. Send a sample of the smallest trouser leg and the thickest cross seam for review.
What matters when choosing a sewing machine for denim trouser hems?
Send the finished leg opening, hem width, fabric weight and thickest seam crossing. Confirm whether the garment needs lockstitch or chainstitch and check the puller and handling setup against the sample.
Ordering & after-sales
Support beyond the machine.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
Continue your machine selection
Related equipment and operations.
Compare the handling method and finished seam. These machines cover different configurations or neighbouring production steps; confirm the right choice against your sample.
Discuss your SF-5022-S/L.
Share your material, seam photo and quantity with Trentzhou.
