SAFE · Automatic Panel Hemming

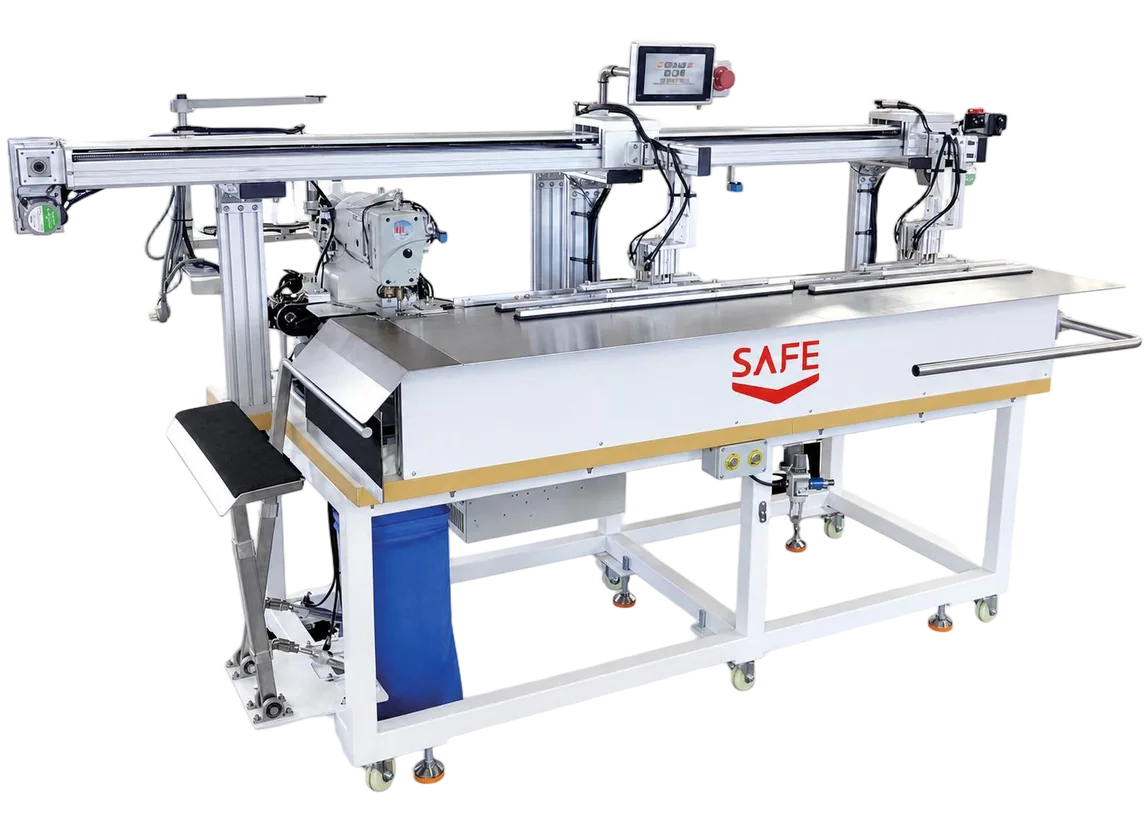

SF-07C-FS-AAutomatic Open-Panel Bottom and Sleeve Hemmer
The SF-07C-FS-A is an industrial hemming machine for open garment panels and sleeves. It combines edge trimming, folding, sewing and stacking in a programmed sequence for the selected component.
Compare this model with sewing automation, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01A programmed sequence coordinates trimming, folding and sewing.
- 02A guided folding system supports an even hem.
- 03Automatic trimming after each piece supports continuous panel handling.
- 04Automatic stacking collects completed panels.
- 05Thread-break detection stops the machine for attention.
- 06Waste collection helps keep the operation organized.
Applications & sewing operations
Match the machine to your work.
- Open-panel bottom hems
- Sleeve hems on prepared garment pieces
- Polo, jersey, piqué and elastane-knit garment panels
Send your material and intended seam for configuration review. Catalogue examples illustrate the application; confirm the required result with a sample.
From the SAFE catalogue
A closer look.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 81. Confirm the final configuration in your quotation.
| Voltage | 220 V |
|---|---|
| Power | 660 W |
| Air pressure | Above 0.6 MPa |
| Hemming width | 13–33 mm |
| Sewing range | 150–750 mm |
| Catalogue production rate | 400–500 pieces/hour; application dependent |
| Packing size | 1,830 × 1,110 × 1,590 mm |
| Net weight | 180 kg |
Before you choose
Questions about this machine.
What affects the hourly output?
Panel length, fabric behaviour, hem width, handling and the final setup affect output. The catalogue reference is 400–500 pieces per hour, subject to application review.
How does an open-panel automatic hemming machine differ from a tubular hemmer?
The way the garment is presented and held is different. SF-07C-FS-A is described for open sections, while SF-07A handles configured tubular bottom hems. Send the component at the actual production stage, including its dimensions and seam position.
Ordering & after-sales
Support beyond the machine.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
