Home / Sewing Machines / SF-13090S
SAFE · Template sewing

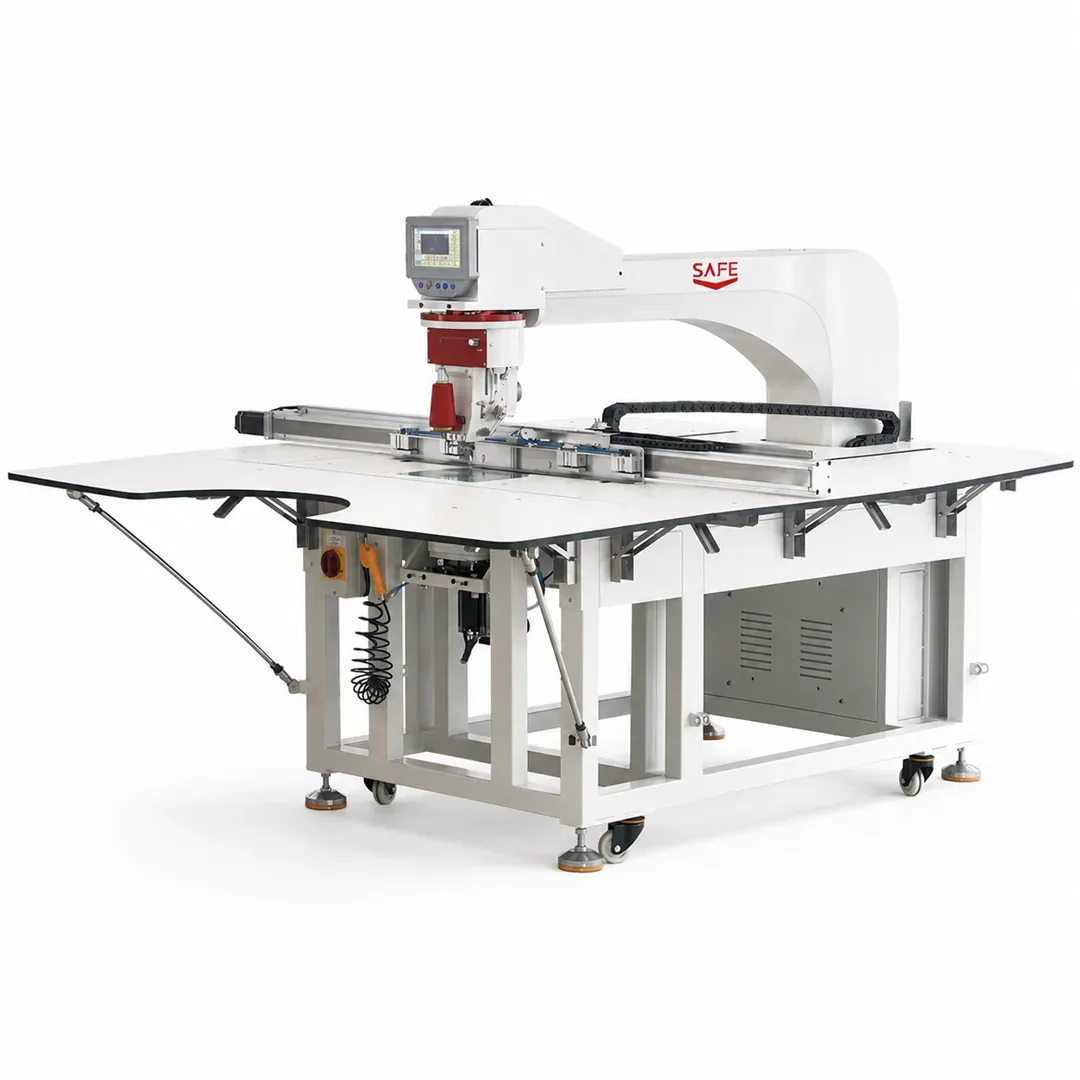

SF-13090SRotating-Head Template Sewing Machine with Head Lift
The SF-13090S is a rotating-head template sewing machine with a 1,300 × 900 mm sewing field. Its 360-degree rotation and listed head lift support the selected large-area template setup.
Compare this model with pattern & template machines, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01360° rotating machine head
- 02Machine head lift up to 50 mm
- 03Motor-driven rotary thread trimming
- 04USB pattern storage
- 05Vertical rotary hook design
- 06Standard hook with a larger hook available as an option
Applications & sewing operations
Review it against your production task.
- Car seat cushions
- Bags and leather goods
- Sofa upholstery
- Heavy-material products
Send your material and intended seam for configuration review. Optional functions and attachments should be confirmed in the quotation.

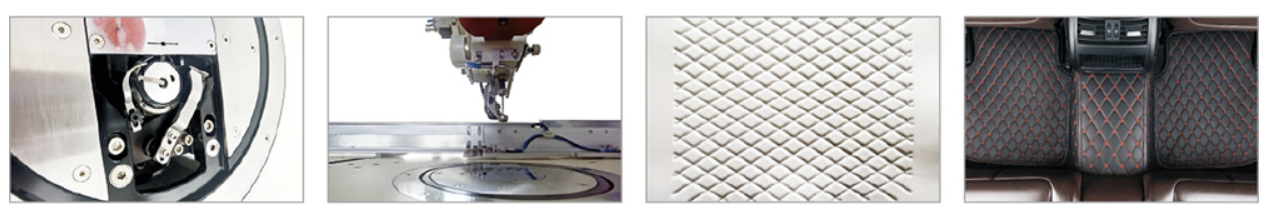

From the SAFE catalogue
A closer look.
Technical data
Specifications.
Specifications follow the reviewed SAFE v06 catalogue. Confirm your final machine configuration in the quotation.
| Specification | Details |
|---|---|
| Sewing area | 1,300 × 900 mm |
| Stitch type | Single-needle lockstitch |
| Maximum sewing speed | 2,500 stitches/min |
| Maximum head lift | 50 mm |
| Stitch length | 0.05–50 mm |
| Maximum stitches per pattern | 20,000 |
| Main motor | 750 W AC servo motor |
| Data storage | USB |
| Rotary hook | Standard hook; larger hook optional |
Before you choose
Questions about this machine.
What does the 50 mm specification describe?
It is the maximum machine-head lift. It does not specify the maximum thickness that can be sewn. Share the material stack and stitch requirements for a suitable configuration.
What sewing area and head movement are available?
The machine has a 1,300 × 900 mm sewing area and a 360° rotating head. Listed applications include car-seat cushions, leather goods and sofa upholstery.
Is a large-capacity hook standard?
The catalogue lists a standard rotary hook, with a larger hook available as an option. It also describes motor-driven rotary thread trimming.
What must I supply for a large-area pattern sewing machine enquiry?
Send the entire sewing path, template drawing, fabric layers and loading sequence. Confirm whether head rotation and lifting are required. The listed maximum head lift describes movement of the head; it is not a guaranteed sewable material thickness.
Ordering & after-sales
Support beyond the machine.
Tell us where the machine will be used and the configuration you require.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
