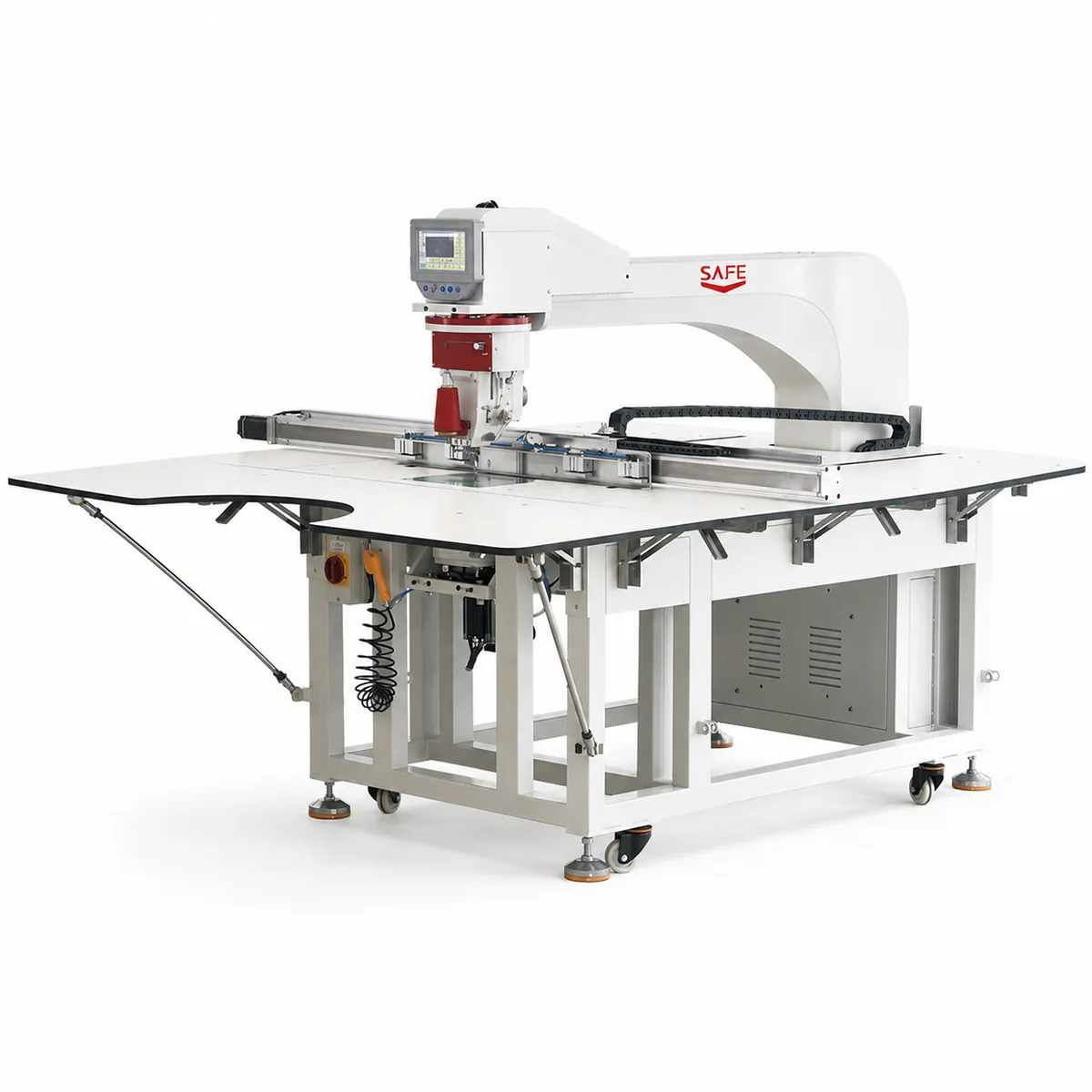

SF-13090XRotating-Head Intelligent Template Sewing Machine
The SF-13090X is an automatic template sewing machine with a 1,300 × 900 mm field, 360-degree rotating head, screw-driven axes and automatic template recognition.
Compare this model with pattern & template machines, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01A 360-degree rotating head maintains the selected sewing direction through the pattern.
- 02Screw-driven X and Y axes support controlled template movement.
- 03Automatic template recognition supports repeatable programme selection.
- 04USB input supports sewing-program transfer.
- 05Intelligent controls simplify pattern setup and operation.
Applications & sewing operations
Match the machine to your work.
- Template-controlled garment sewing
- Large-area patterned sewing within 1,300 × 900 mm
- Operations requiring head rotation to follow the stitch direction
Send your material and intended seam for configuration review. Catalogue examples illustrate the application; confirm the required result with a sample.

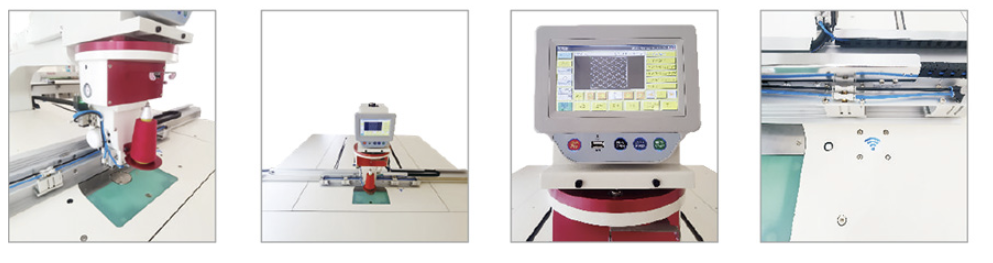

From the SAFE catalogue
A closer look.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 41–42. Confirm the final configuration in your quotation.
| Sewing area | 1,300 × 900 mm |
|---|---|
| Maximum speed | 3,500 stitches/min |
| Stitch type | Single-needle lockstitch |
| Rotating-head motor | 600 W servo |
| Head lifting | Not provided |
| X-axis drive | Screw drive, 600 W servo |
| Y-axis drive | Screw drive, 750 W servo |
| Main motor | 750 W AC servo |
| Stitch length | 0.05–50 mm |
| Maximum stitches per program | 20,000 |
| Presser-foot lift | 22 mm |
| Presser-foot stroke | 0 or 2–10 mm; factory setting 3 mm |
| Hook | Standard; large-capacity hook optional |
| Thread trimming | Standard rotary knife |
| Data input | USB |
| Air pressure | 0.4–0.6 MPa |
| Air consumption | 1.7 L/min |
Before you choose
Questions about this machine.
What information is needed for a template quotation?
Send the sewing pattern, workpiece dimensions, material layers and any loading-clearance requirements. We will review the template and machine configuration.
Does this rotating-head template sewing machine also lift its head?
The listed SF-13090X configuration does not provide head lifting. Compare SF-13090S if your process requires the catalogue head-lift arrangement, and review the complete workholding and loading sequence before choosing.
