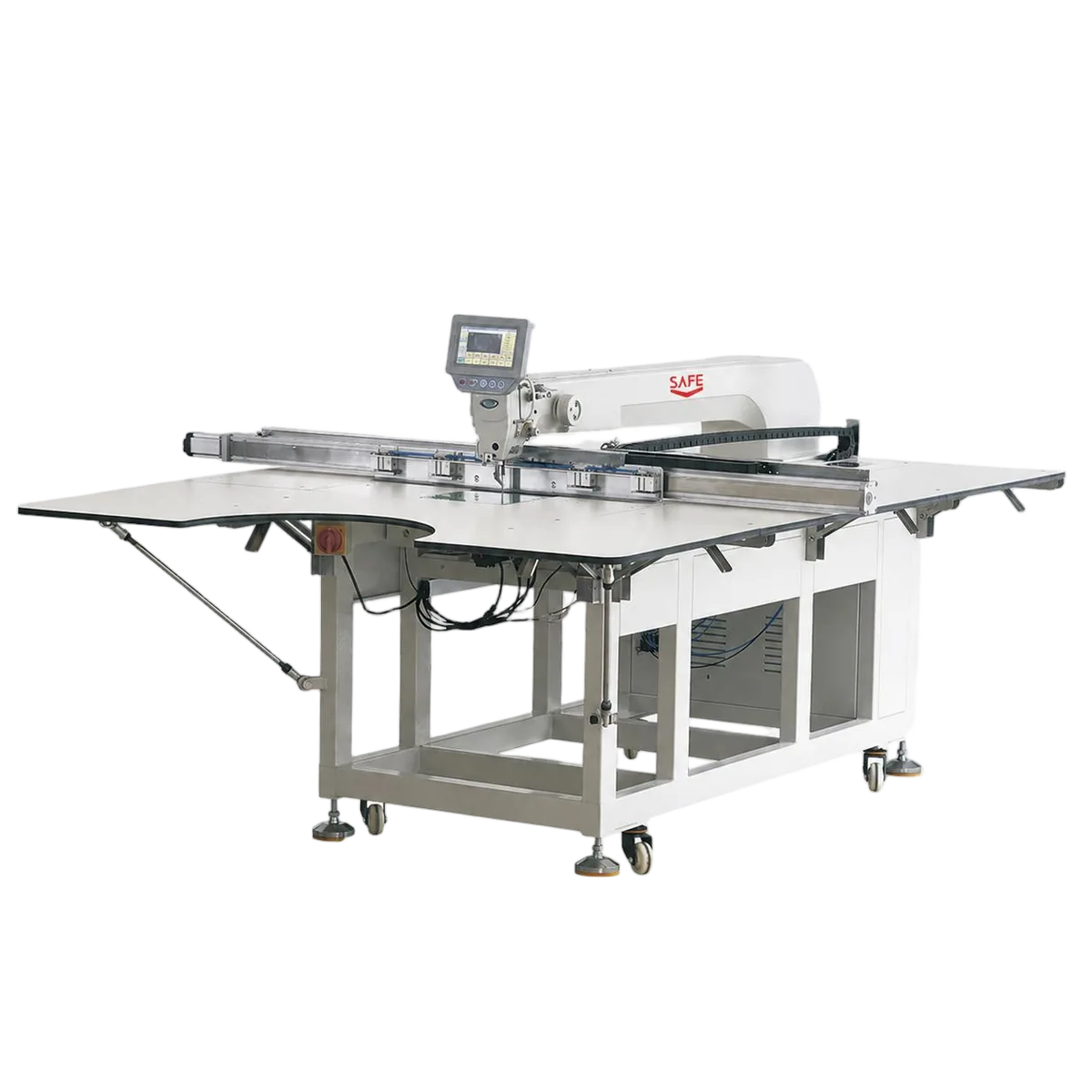

SF-13090TLarge-Area Intelligent Template Sewing Machine
The SF-13090T is a large-area template sewing machine with a 1,300 × 900 mm sewing field, screw-driven X/Y axes and a full-base structure for the selected garment template configuration.
Compare this model with pattern & template machines, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01The full-base structure supports a stable workstation.
- 02A bearing-type thread take-up lever does not require oiling at that mechanism.
- 03A large sewing field accommodates garment template operations.
- 04Screw-driven servo axes control the programmed work path.
- 05A rotary-knife trimming system is included in the catalogue configuration.
Applications & sewing operations
Match the machine to your work.
- Large-area garment template sewing
- Patterned operations on prepared fabric panels
- Repeat sewing paths using application-specific templates
Send your material and intended seam for configuration review. Catalogue examples illustrate the application; confirm the required result with a sample.

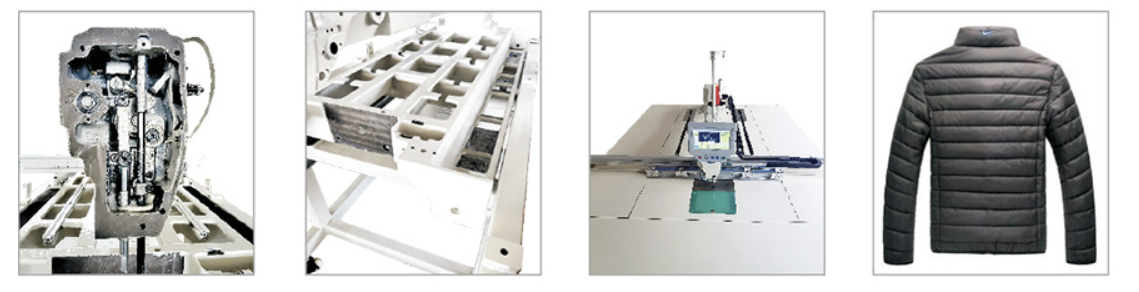

From the SAFE catalogue
A closer look.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 43–44. Confirm the final configuration in your quotation.
| Sewing area | 1,300 × 900 mm |
|---|---|
| Maximum speed | 3,500 stitches/min |
| Stitch type | Single-needle lockstitch |
| X-axis drive | Screw drive, 600 W servo |
| Y-axis drive | Screw drive, 750 W servo |
| Main motor | 600 W AC servo |
| Stitch length | 0.05–50 mm |
| Maximum stitches per program | 20,000 |
| Presser-foot stroke | 0 or 2–10 mm; factory setting 3 mm |
| Hook | Standard; large-capacity hook optional |
| Thread trimming | Standard rotary knife |
| Air pressure | 0.4–0.6 MPa |
| Air consumption | 1.7 L/min |
Before you choose
Questions about this machine.
Is the entire machine oil-free?
No. The catalogue describes a bearing-type thread take-up lever that does not need oiling at that mechanism. It does not claim that the entire machine is oil-free.
How is this template machine different from the rotating-head models?
The 13090 family includes different head arrangements. Compare SF-13090S and SF-13090X when rotation is required, and use the individual specification tables to confirm head movement, lifting and workholding for the quoted model.
Ordering & after-sales
Support beyond the machine.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
