SF-2010200 × 100 mm Electronic Pattern Sewing Machine
The SF-2010 is an industrial pattern sewing machine for repeat paths within a 200 × 100 mm field. Its single-needle lockstitch arrangement combines pulse-motor feed with a 550 W AC servo main motor.
Compare this model with pattern & template machines, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01200 × 100 mm sewing area for programmable patterns.
- 02Stitch lengths from 0.05 to 12.7 mm.
- 03Up to 20,000 stitches in a pattern.
- 04Pneumatic work clamp, with standard thread wiper and automatic trimmer.

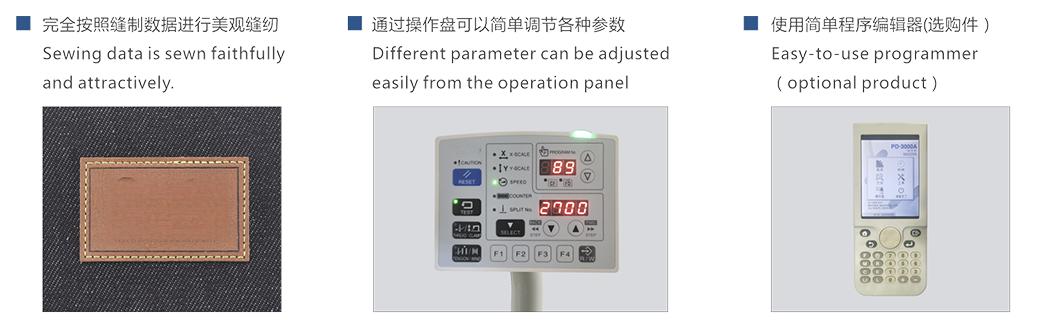

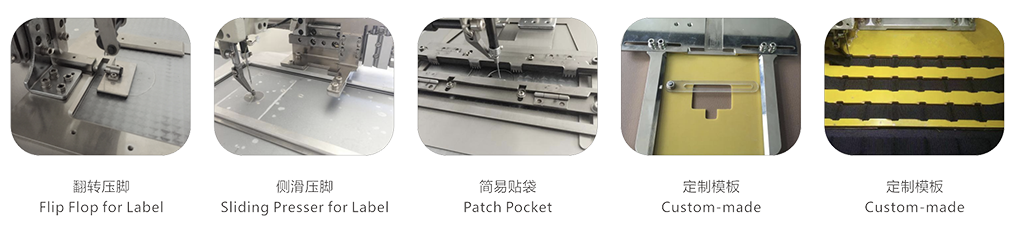

- 05Catalogue options include a programmer and application-specific clamp or attachment arrangements.
Applications & sewing operations
Review it against your production task.
- Repeated programmed sewing patterns within the available field.
- Small components requiring a dedicated holding fixture.
- Pocket or similar attachment operations with an appropriate optional fixture.
Send your material and intended seam for configuration review. Optional functions and attachments should be confirmed in the quotation.
From the SAFE catalogue
A closer look.
Technical data
Specifications.
Specifications follow the reviewed SAFE v06 catalogue. Confirm your final machine configuration in the quotation.
| Specification | Details |
|---|---|
| Sewing area | 200 × 100 mm |
| Stitch type | Single-needle lockstitch |
| Maximum speed | 2,700 stitches/min |
| Feed | Intermittent pulse-motor feed |
| Stitch length | 0.05–12.7 mm |
| Pattern capacity | Up to 20,000 stitches per pattern |
| Work-clamp lift | Up to 30 mm; pneumatic |
| Presser-foot rise | 19.5 mm |
| Main motor | 550 W AC servo |
| Air requirement | 0.5 MPa; 1.7 L/min |
| Thread wiper / trimmer | Standard |
| Pattern transfer | CF / USB through the LCD programmer |
Before you choose
Questions about this machine.
Are the programmer and special attachments included?
The catalogue shows programmer and application-specific accessories as options. Confirm the required programmer, fixture and attachments in the quotation.
How do I choose the field size for an electronic pattern sewing machine?
The sewing field must contain the full stitch path, with a suitable clamp holding the component. Include the part dimensions, material stack and loading method. Compare SF-6040 when a larger listed field is required.
Ordering & after-sales
Support beyond the machine.
Tell us where the machine will be used and the configuration you require.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
