Home / Sewing Machines / SF-1560DL-18-7
SAFE · Heavy Duty & Compound Feed
SF-1560DL-18-7 Double-Needle Compound-Feed Sewing Machine
Sew parallel seams in leather goods and upholstery with the SAFE SF-1560DL-18-7. This double-needle compound-feed machine combines a 457 mm listed working length with pneumatic foot lifting, reverse feed and automatic thread trimming.
Product features
Built around the sewing operation.
- 01Compound feed, a large hook and automatic lubrication are specified for the range.
- 02The -7 configuration adds automatic trimming, backtacking and alternating-lift adjustment.

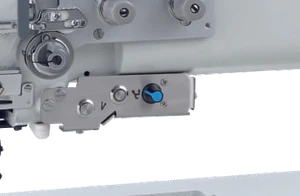

- 03An electronic handwheel and stitch-compensation function support positioning and sewing adjustments.
- 04Available twin-needle gauges range from 4.8 to 25.4 mm; select the required gauge when ordering.
Applications & catalogue details
Check the material, seam and handling.
- Parallel seams on leather bags and other leather goods.
- Sofa and automotive upholstery assemblies.
- Larger medium-to-heavy workpieces needing more clearance around the seam.
Send a material or finished-seam sample to confirm the configuration. Catalogue examples illustrate the operation; the required result should be agreed before ordering.
Discuss Your Application
Technical data
SF-1560DL-18-7 specifications
SAFE v06 catalogue, printed page 19. Confirm the supplied configuration in your quotation.
Maximum speed is a catalogue rating. Actual output depends on material, setup and handling. Packing dimensions, where listed, describe the shipment.
View the SAFE Catalogue| Model | SF-1560DL-18-7 |
|---|---|
| Needles | 2 |
| Feed mechanism | Compound feed |
| Maximum speed | 1,800 rpm |
| Catalogue stitch length | 9 mm |
| Needle system | DP×17 #19–23 |
| Needle-bar stroke | 36 mm |
| Presser-foot lift | 9 / 16 mm |
| Working space | 457 × 105 / 125 mm, as listed |
| Needle-gauge options | 4.8 / 6.4 / 7.9 / 9.5 / 12.7 / 25.4 mm |
| Automatic trimming / backtacking | Yes |
| Presser-foot lifting | Pneumatic |
| Lubrication | Automatic |
Before you choose
Questions about SF-1560DL-18-7
Which needle gauge should I choose?
Match the gauge to the spacing between the two seam lines. The catalogue lists 4.8, 6.4, 7.9, 9.5, 12.7 and 25.4 mm options. Confirm the chosen gauge and supplied parts in the quotation.
What does the -7 configuration add?
The catalogue lists pneumatic lifting and reverse feed, automatic trimming and backtacking, alternating-lift adjustment, an electronic handwheel and stitch compensation for SF-1560DL-18-7.
How does the 18-inch range differ from the 25-inch range?
The listed working length is 457 mm for this range and 635 mm for the 25-inch range. Choose according to the space needed to handle the workpiece, not the packed shipment size.
Ordering & technical support
Prepare a configuration-specific enquiry.
Send the model, material, seam or operation, quantity and destination. For automated equipment, include the workpiece dimensions and current handling steps.
From one machineFactories and dealers welcome
1-year warrantySpare-parts supply available
Remote supportSetup and technical assistance
Pakistan officesKarachi and Faisalabad contacts
