Home / Sewing Machines / SF-16S-311-2T
SAFE · Pocket welting
SF-16S-311-2TAutomatic Pocket-Welting Machine
The SF-16S-311-2T is an automatic pocket-welting machine combining pneumatic folding and a configurable clamp system. Its 200 × 300 mm sewing range supports suitable pocket and garment-opening operations.
Compare this model with sewing automation, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01Pneumatic automatic folding is described without a separate pre-ironing step.
- 02A retractable inner clamp supports the specified pocket-handling workflow.
- 03Replaceable and adjustable clamping allows the setup to be matched to the application.
- 04Direct motor drive supports the integrated sewing operation.
Applications & sewing operations
Match the machine to your work.

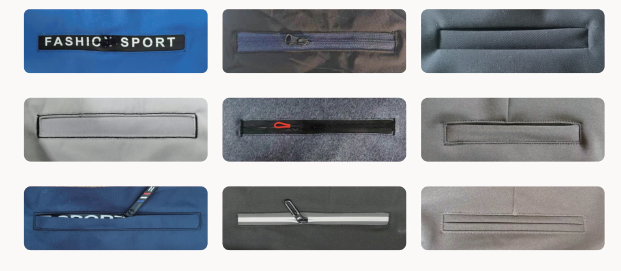

- Functional and decorative garment pockets.
- Suitable T-shirt placket operations with the appropriate fixture.
- Zippered pocket openings on sports trousers.
Send your material and intended operation for configuration review. Catalogue examples illustrate an application; confirm the required result with a sample.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 67. Confirm the supplied configuration in your quotation.
| Sewing range | 200 × 300 mm |
|---|---|
| Stitch length | 1–3.5 mm |
| Clamp lift | 60–80 mm |
| Needle system | DP×17 |
| Power supply | AC 200 V, as specified in the catalogue; confirm destination supply |
| Air pressure | 0.6 MPa |
| Catalogue reference cycle | 13–26 seconds/piece; varies by application and handling |
| Machine dimensions | 1,930 × 1,430 × 1,660 mm |
| Net / gross weight | 950 / 1,050 kg |
Before you choose
Questions about this machine.
Are the listed dimensions the crate dimensions?
No. The catalogue labels 1,930 × 1,430 × 1,660 mm as machine dimensions. Request the final export packing dimensions when arranging freight.
Can it run from my factory power supply?
The v06 catalogue lists AC 200 V for this model. Tell us the destination voltage, phase and frequency so that the supplied electrical configuration can be confirmed before ordering.
What should I send for a welt-pocket sewing machine review?
Send the opening dimensions, welt construction, fabric layers, pocket components and required stitch path. Welting, pocket-flap processing and three-dimensional pocket attaching are separate selections, so identify the production step clearly.
Ordering & after-sales
Support beyond the machine.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
Explore the range
Related equipment.
Discuss your SF-16S-311-2T.
Share your material, operation, quantity and destination with Trentzhou.
