SF-8254Double-Needle Belt-Loop Sewing Machine
The SF-8254 is a computerized double-needle belt-loop machine for configured garment loop operations. Touchscreen pattern editing and adjustable settings help define the required attachment pattern.
Compare this model with sewing automation, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01Touchscreen pattern editing and data management support the selected sewing operation.
- 02Software settings adjust loop length, loop ends and waste detection without the described mechanical adjustment.
- 03X/Y parameters allow the loop-width setting to be configured.
- 04Bartack and zigzag pattern settings support different belt-loop attachment requirements.
Applications & sewing operations
Match the machine to your work.
- Belt-loop attachment on jeans and trousers.
- Loops requiring a configured two-needle attachment pattern.
- Garment production using repeatable finished loop dimensions.

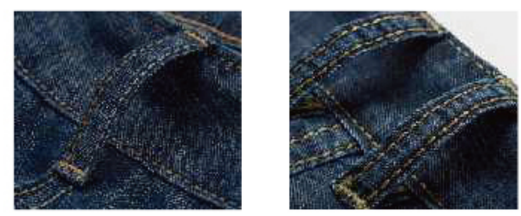

Send your material and intended operation for configuration review. Catalogue examples illustrate an application; confirm the required result with a sample.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 75. Confirm the supplied configuration in your quotation.
| Sewing head | Computerized double-needle lockstitch bartack head |
|---|---|
| Loop width | 9–18 mm |
| Finished loop length | 48–78 mm |
| Needle gauge | 40–70 mm |
| Tack length | 7–22 mm |
| Tack width | 1–3.2 mm |
| Needle-bar stroke | 45.7 mm |
| Needle system | DP×17 #19–21 |
| Work-clamp lift | 21 mm |
| Stored patterns | 99 |
| Selectable stitch counts | 28 / 36 / 42 |
| Power supply | Single-phase 220 V |
| Air pressure | 0.5 MPa |
Before you choose
Questions about this machine.
Does the machine require compressed air?
Yes. The catalogue lists 0.5 MPa air pressure and single-phase 220 V electrical power. Confirm the installation requirements before shipment.
What should I specify for a double-needle belt-loop machine?
Provide the loop width and length, material layers, garment position and attachment pattern. Confirm the loop settings and stitch layout against the sample. This specialised operation should not be selected solely by a general double-needle machine description.
Ordering & after-sales
Support beyond the machine.
From one machineOrders for factories and dealers
1-year warrantyMachine warranty and spare parts supply
Remote technical supportShare model, issue and a short video
Pakistan officesKarachi and Faisalabad contacts
