SF-17Automatic Dart-Sewing Machine
The SF-17 is an automatic dart sewing machine combining sewing, pressing and collection. It is intended for configured straight or right-angle dart operations in trousers, suits and women’s garments.
Compare this model with sewing automation, or use our machine selection enquiry guide to prepare your requirements.
SAFE catalogue product imageProduct advantages
Details that support the operation.
- 01The described workflow combines sewing, pressing and garment collection.
- 02The catalogue process eliminates the separate chalk-marking step for the configured dart.
- 03Straight and right-angle dart applications are supported with the appropriate setup.
- 04Automatic pressing is listed as standard equipment.

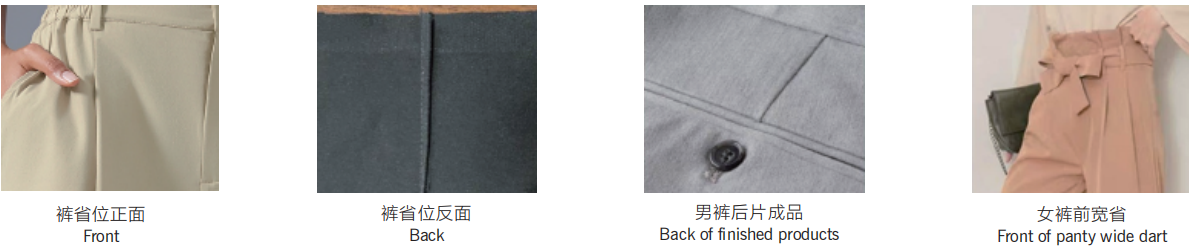

Applications & sewing operations
Match the machine to your work.
- Trouser darts and shaping operations.
- Suit garment darts matched to a fixture and pattern.
- Women’s garment darts requiring a consistent configured shape.
Send your material and intended operation for configuration review. Catalogue examples illustrate an application; confirm the required result with a sample.
Technical data
Specifications.
Source: SAFE v06 catalogue, printed page 82. Confirm the supplied configuration in your quotation.
| Power supply | AC 220 V |
|---|---|
| Air pressure | Above 0.5 MPa |
| Maximum speed | 3,000 rpm |
| Needle system | DP×17 |
| Maximum dart length | 180 mm |
| Catalogue reference cycle | 30 seconds/piece, including loading, sewing and pressing; actual cycle varies |
| Net weight | 148 kg |
| Packing dimensions | 1,500 × 1,250 × 1,250 mm |
Before you choose
Questions about this machine.
Is 30 seconds per piece a guaranteed output?
No. It is the catalogue reference cycle, including loading, sewing and pressing. Actual throughput depends on the garment, settings and operator handling and should be assessed with your sample.
What should I prepare for an automatic dart sewing operation?
Send the dart shape, length and position, fabric sample and finished garment requirements. Include how the component is loaded and pressed in the current process so the proposed workflow can be checked.
