SF-0388Z-D4 Direct Drive Football Sewing Machine
The SAFE SF-0388Z-D4 football sewing machine is configured for ball-production seams and thick sewing thread. A 750 W direct-drive servo system works with electronic thread release, a pneumatic presser-foot lifter and a dedicated ball-thread clamp.
Product features
Built around the sewing operation.

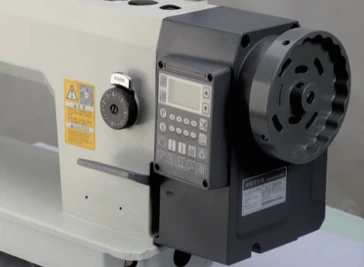

- 01A 750 W direct-drive servo system is specified for the football-sewing configuration.

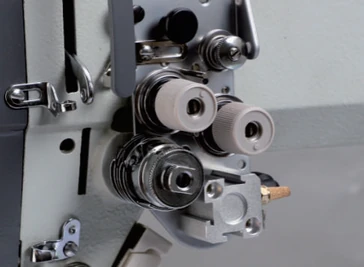

- 02Electronic thread release and a dedicated ball-thread clamp support handling of thick ball-sewing thread.

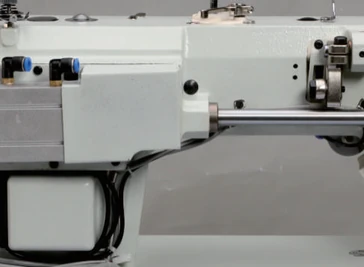

- 03A built-in pneumatic presser-foot lifter helps the operator reposition the panels.
- 04Automatic thread trimming and backtacking are listed in the specification table.
Applications & catalogue details
Check the material, seam and handling.
- Sewn football and soccer-ball panel assemblies.
- Ball-production operations using thick thread, after seam and material review.
- Panel joining that requires a dedicated ball-thread clamp and presser-foot setup.
Send a material or finished-seam sample to confirm the configuration. Catalogue examples illustrate the operation; the required result should be agreed before ordering.
Discuss Your Application
Technical data
SF-0388Z-D4 specifications
SAFE v06 catalogue, printed page 23. Confirm the supplied configuration in your quotation.
Maximum speed is a catalogue rating. Actual output depends on material, setup and handling. Packing dimensions, where listed, describe the shipment.
View the SAFE Catalogue| Model | SF-0388Z-D4 |
|---|---|
| Drive | 750 W direct-drive servo system |
| Needle system | DP×17 #20–23 |
| Listed stitch length | 8 mm |
| Presser-foot lift | 7 / 13 mm |
| Maximum speed | 2,300 rpm |
| Automatic functions | Thread trimming, backtacking and pneumatic foot lifting |
| Net / gross weight | 41 / 48 kg |
| Packing dimensions | 730 × 330 × 570 mm |
Before you choose
Questions about SF-0388Z-D4
Is this for sewing football panels or making a bonded ball?
SF-0388Z-D4 is a sewing machine. It should be selected for the required stitched panel construction; it does not replace adhesive or thermal-bonding equipment.
What information is needed to assess a soccer-ball seam?
Provide the panel material and layer stack, backing, thread size, required seam allowance and a sample of the finished construction.
Does the presser-foot lift mean it can sew 13 mm thick material?
No. Lift describes clearance for loading. Sewable thickness depends on the material, seam, needle, thread and feed configuration and needs a sample check.
Is compressed air required?
The catalogue specifies a pneumatic foot lifter. Confirm the required air pressure and connection, and whether an air source must be supplied separately.
Ordering & technical support
Prepare a configuration-specific enquiry.
Send the model, material, seam or operation, quantity and destination. For automated equipment, include the workpiece dimensions and current handling steps.
From one machineFactories and dealers welcome
1-year warrantySpare-parts supply available
Remote supportSetup and technical assistance
Pakistan officesKarachi and Faisalabad contacts
