Home / Sewing Machines / SF-18-3
SAFE · Cord-End Automation
SF-18-3 Cord-End Bartacking Machine
Finish folded drawstring ends with the SAFE SF-18-3 cord-end bartacking machine. The catalogue describes rolling and bartacking modes, a dual-end rolling arrangement and a DAHAO control system.
Product features
Built around the sewing operation.

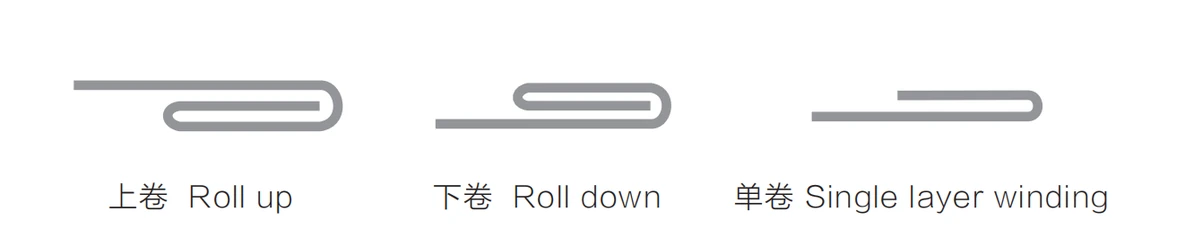

- 01Optional cord-rolling and bartacking modes let the configuration follow the required finish.
- 02The rolling arrangement processes both cord ends for a consistent folded presentation.
- 03Fault self-diagnosis supports identifying operating issues.
- 04Collision protection is listed for the mechanism; correct setup and operator training remain necessary.
Applications & catalogue details
Check the material, seam and handling.

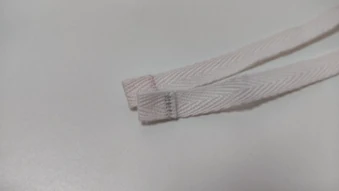

- Folded and bartacked drawstring ends.
- Cord finishes used on hooded garments.
- Drawstring waist applications on trousers or casual garments.
Send a material or finished-seam sample to confirm the configuration. Catalogue examples illustrate the operation; the required result should be agreed before ordering.
Discuss Your Application
Technical data
SF-18-3 specifications
SAFE v06 catalogue, printed page 70. Confirm the supplied configuration in your quotation.
Maximum speed is a catalogue rating. Actual output depends on material, setup and handling. Packing dimensions, where listed, describe the shipment.
View the SAFE Catalogue| Model | SF-18-3 |
|---|---|
| Voltage | AC 220 V |
| Air pressure | Above 0.5 MPa |
| Maximum speed | 2,500 rpm |
| Needle | DP×17 |
| Listed sewing range | 220 × 100 mm |
| Control system | DAHAO |
| Net weight | 147 kg |
| Packing dimensions | 1220 × 1190 × 1320 mm |
Before you choose
Questions about SF-18-3
Which drawstrings can be processed?
The catalogue identifies cord-end folding and bartacking but does not give a universal cord-diameter range. Send the material, width or diameter, stiffness and desired folded finish for review.
Are cord rolling and bartacking both standard?
The catalogue describes optional modes. Confirm the rolling arrangement, sewing mode and supplied tooling against your sample when requesting a quote.
What does the 220 × 100 mm specification mean?
It is the listed sewing range. It should not be interpreted as the allowed cord diameter or finished cord length. Those dimensions must be checked separately.
Ordering & technical support
Prepare a configuration-specific enquiry.
Send the model, material, seam or operation, quantity and destination. For automated equipment, include the workpiece dimensions and current handling steps.
From one machineFactories and dealers welcome
1-year warrantySpare-parts supply available
Remote supportSetup and technical assistance
Pakistan officesKarachi and Faisalabad contacts
